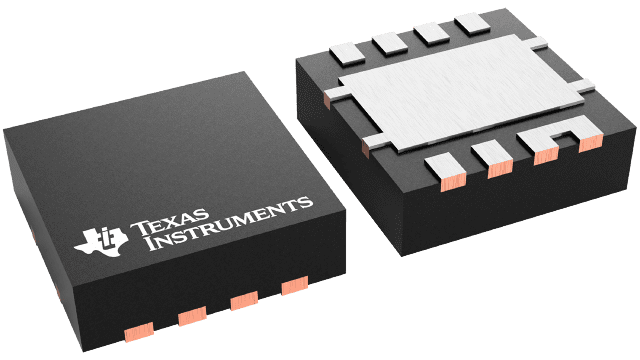

CSD87334Q3DT Texas Instruments - Yeehing Electronics
30-V, N channel synchronous buck NexFET™ power MOSFET, SON 3 mm x 3 mm power block, 20 A
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.221 |
100 — 249 | 1.008 |
250 — 999 | 0.724 |
1,000 + | 0.38 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | MOSFET |
RoHS | E |
Technology | Si |
Mounting Style | SMD/SMT |
Package / Case | VSON-8 |
Number of Channels | 2 Channel |
Transistor Polarity | N-Channel |
Vds - Drain-Source Breakdown Voltage | 30 V |
Id - Continuous Drain Current | 20 A |
Rds On - Drain-Source Resistance | 8.3 mOhms, 8.3 mOhms |
Vgs th - Gate-Source Threshold Voltage | 750 mV |
Vgs - Gate-Source Voltage | 8 V |
Qg - Gate Charge | 8.3 nC, 8.3 nC |
Minimum Operating Temperature | - 55 C |
Maximum Operating Temperature | + 150 C |
Pd - Power Dissipation | 6 W |
Configuration | Dual |
Channel Mode | Enhancement |
Tradename | NexFET |
Packaging | Reel |
Height | 1 mm |
Length | 3.3 mm |
Series | CSD87334Q3D |
Width | 3.3 mm |
Brand | Texas Instruments |
Forward Transconductance - Min | 62 S |
Development Kit | VSON |
Fall Time | 17 ns, 17 ns |
Product Type | MOSFET |
Rise Time | 7 ns, 7 ns |
Factory Pack Quantity | 250 |
Subcategory | MOSFETs |
Typical Turn-Off Delay Time | 11 ns, 11 ns |
Typical Turn-On Delay Time | 4 ns, 4 ns |
Unit Weight | 0.002677 oz |
For more information, please refer to datasheet
Documents
CSD87334Q3DT Datasheet |
More Information
The CSD87334Q3D NexFET™ power block is an optimized design for synchronous buck and boost applications offering high-current, high-efficiency, and high-frequency capability in a small 3.3 mm × 3.3 mm outline. Optimized for 5-V gate drive applications, this product offers a flexible solution in high-duty cycle applications when paired with an external controller or driver.
