CSD87335Q3D Texas Instruments - Yeehing Electronics

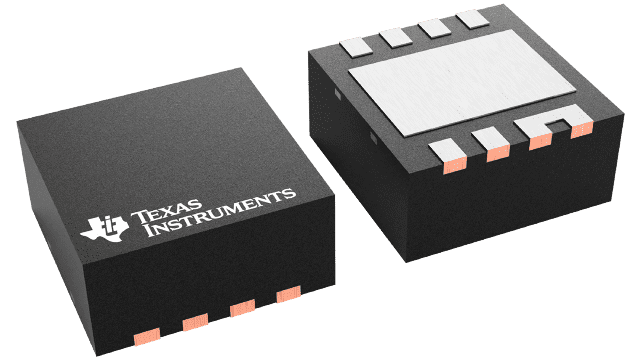

30-V, N channel synchronous buck NexFET™ power MOSFET, SON 3 mm x 3 mm power block, 25 A

Pricing (USD)

Quantity	Unit Price
1 — 99	1.178
100 — 249	0.973
250 — 999	0.699
1,000 +	0.37

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	MOSFET
RoHS	Y
Technology	Si
Mounting Style	SMD/SMT
Package / Case	LSON-CLIP-8
Number of Channels	2 Channel
Transistor Polarity	N-Channel
Vds - Drain-Source Breakdown Voltage	30 V
Id - Continuous Drain Current	25 A
Rds On - Drain-Source Resistance	2.4 Ohms, 1.2 Ohms
Vgs th - Gate-Source Threshold Voltage	1 V, 750 mV
Vgs - Gate-Source Voltage	10 V
Qg - Gate Charge	5.7 nC, 10.7 nC
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 150 C
Pd - Power Dissipation	6 W
Configuration	Dual
Channel Mode	Enhancement
Tradename	NexFET
Packaging	Reel
Height	1.5 mm
Length	3.3 mm
Series	CSD87335Q3D
Transistor Type	2 N-Channel
Width	3.3 mm
Brand	Texas Instruments
Forward Transconductance - Min	59 S, 107 S
Fall Time	4 ns, 5 ns
Product Type	MOSFET
Rise Time	29 ns, 27 ns
Factory Pack Quantity	250
Subcategory	MOSFETs
Typical Turn-Off Delay Time	13 ns, 17 ns
Typical Turn-On Delay Time	8 ns, 8 ns
Unit Weight	0.002402 oz

For more information, please refer to datasheet

Documents

CSD87335Q3D Datasheet

More Information

The CSD87335Q3D NexFET™ power block is an optimized design for synchronous buck applications offering high-current, high-efficiency, and high-frequency capability in a small 3.3-mm × 3.3-mm outline. Optimized for 5-V gate drive applications, this product offers a flexible solution capable of offering a high-density power supply when paired with any 5-V gate drive from an external controller or driver.
