CSD87335Q3DT Texas Instruments - Yeehing Electronics

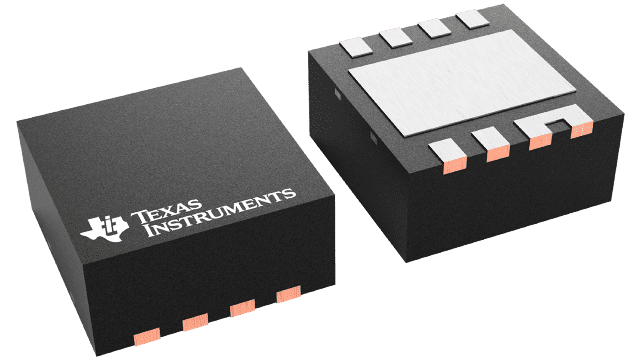

30-V, N channel synchronous buck NexFET™ power MOSFET, SON 3 mm x 3 mm power block, 25 A
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.532 |
| 100 — 249 | 1.265 |
| 250 — 999 | 0.909 |
| 1,000 + | 0.48 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | MOSFET |
| RoHS | Y |
| Technology | Si |
| Mounting Style | SMD/SMT |
| Package / Case | LSON-CLIP-8 |
| Number of Channels | 2 Channel |
| Transistor Polarity | N-Channel |
| Vds - Drain-Source Breakdown Voltage | 30 V |
| Id - Continuous Drain Current | 25 A |
| Rds On - Drain-Source Resistance | 2.4 Ohms, 1.2 Ohms |
| Vgs th - Gate-Source Threshold Voltage | 1 V, 750 mV |
| Vgs - Gate-Source Voltage | 10 V |
| Qg - Gate Charge | 5.7 nC, 10.7 nC |
| Minimum Operating Temperature | - 55 C |
| Maximum Operating Temperature | + 150 C |
| Pd - Power Dissipation | 6 W |
| Configuration | Dual |
| Channel Mode | Enhancement |
| Tradename | NexFET |
| Packaging | Reel |
| Height | 1.5 mm |
| Length | 3.3 mm |
| Series | CSD87335Q3D |
| Transistor Type | 2 N-Channel |
| Width | 3.3 mm |
| Brand | Texas Instruments |
| Forward Transconductance - Min | 59 S, 107 S |
| Fall Time | 4 ns, 5 ns |
| Product Type | MOSFET |
| Rise Time | 29 ns, 27 ns |
| Factory Pack Quantity | 250 |
| Subcategory | MOSFETs |
| Typical Turn-Off Delay Time | 13 ns, 17 ns |
| Typical Turn-On Delay Time | 8 ns, 8 ns |
| Unit Weight | 0.002402 oz |
For more information, please refer to datasheet
Documents
| CSD87335Q3DT Datasheet |
More Information
The CSD87335Q3D NexFET™ power block is an optimized design for synchronous buck applications offering high-current, high-efficiency, and high-frequency capability in a small 3.3-mm × 3.3-mm outline. Optimized for 5-V gate drive applications, this product offers a flexible solution capable of offering a high-density power supply when paired with any 5-V gate drive from an external controller or driver.
