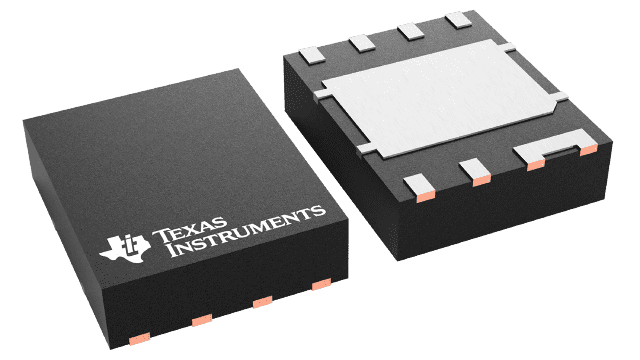

CSD87353Q5D Texas Instruments - Yeehing Electronics
30-V, N channel synchronous buck NexFET™ power MOSFET, SON 5 mm x 6 mm power block, 40 A
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 2.126 |
100 — 249 | 1.756 |
250 — 999 | 1.261 |
1,000 + | 0.54 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | MOSFET |
RoHS | E |
Technology | Si |
Mounting Style | SMD/SMT |
Package / Case | LSON-CLIP-8 |
Number of Channels | 2 Channel |
Transistor Polarity | N-Channel |
Vds - Drain-Source Breakdown Voltage | 30 V |
Id - Continuous Drain Current | 40 A |
Vgs th - Gate-Source Threshold Voltage | 1.1 V, 750 mV |
Vgs - Gate-Source Voltage | 10 V |
Qg - Gate Charge | 16 nC, 20 nC |
Minimum Operating Temperature | - 55 C |
Maximum Operating Temperature | + 150 C |
Pd - Power Dissipation | 12 W |
Configuration | Dual |
Channel Mode | Enhancement |
Tradename | NexFET |
Packaging | Reel |
Height | 1.5 mm |
Length | 6 mm |
Series | CSD87353Q5D |
Transistor Type | 2 N-Channel |
Width | 5 mm |
Brand | Texas Instruments |
Forward Transconductance - Min | 135 S, 160 S |
Fall Time | 4 ns, 4.6 ns |
Product Type | MOSFET |
Rise Time | 16 ns, 10 ns |
Factory Pack Quantity | 2500 |
Subcategory | MOSFETs |
Typical Turn-Off Delay Time | 20 ns, 23 ns |
Typical Turn-On Delay Time | 10 ns, 8.5 ns |
Unit Weight | 0.011161 oz |
For more information, please refer to datasheet
Documents
CSD87353Q5D Datasheet |
More Information
The CSD87353Q5D NexFET™ power block is an optimized design for synchronous buck applications offering high-current, high-efficiency, and high-frequency capability in a small 5-mm × 6-mm outline. Optimized for 5-V gate drive applications, this product offers a flexible solution capable of offering a high-density power supply when paired with any 5-V gate drive from an external controller/driver.
