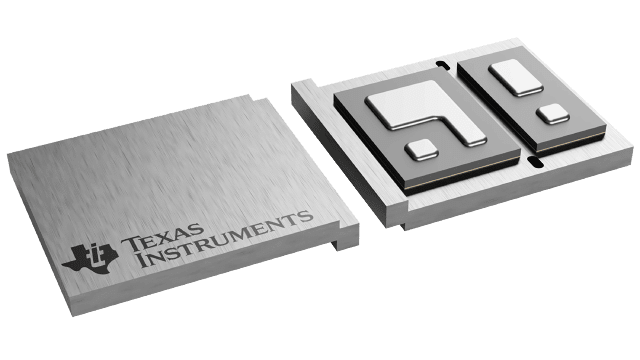

CSD87381P Texas Instruments - Yeehing Electronics

30-V, N channel synchronous buck NexFET™ power MOSFET, 3 mm x 2.5 mm LGA, 15 A

Pricing (USD)

Quantity	Unit Price
1 — 99	0.655
100 — 249	0.504
250 — 999	0.371
1,000 +	0.19

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	MOSFET
RoHS	Y
Technology	Si
Mounting Style	SMD/SMT
Package / Case	PTAB-5
Number of Channels	2 Channel
Transistor Polarity	N-Channel
Vds - Drain-Source Breakdown Voltage	30 V
Id - Continuous Drain Current	8 A
Rds On - Drain-Source Resistance	16.3 mOhms, 7.6 mOhms
Vgs th - Gate-Source Threshold Voltage	1.1 V, 1 V
Vgs - Gate-Source Voltage	8 V
Qg - Gate Charge	3.9 nC, 8.9 nC
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 150 C
Pd - Power Dissipation	4 W
Configuration	Dual
Channel Mode	Enhancement
Tradename	NexFET
Packaging	Reel
Height	0.48 mm
Length	3 mm
Series	CSD87381P
Transistor Type	2 N-Channel
Width	2.5 mm
Brand	Texas Instruments
Forward Transconductance - Min	40 S, 89 S
Development Kit	CSD87381PEVM-603
Fall Time	3 ns, 2.9 ns
Product Type	MOSFET
Rise Time	19.3 ns, 16.3 ns
Factory Pack Quantity	2500
Subcategory	MOSFETs
Typical Turn-Off Delay Time	10.6 ns, 16.8 ns
Typical Turn-On Delay Time	6.7 ns, 7.9 ns

For more information, please refer to datasheet

Documents

CSD87381P Datasheet

More Information

The CSD87381P NexFET™ power block II is a highly optimized design for synchronous buck applications offering high current and high efficiency capability in a small 3 mm × 2.5 mm outline. Optimized for 5 V gate drive applications, this product offers an efficient and flexible solution capable of providing a high density power supply when paired with any 5 V gate driver from an external controller/driver.
