CSD87384M Texas Instruments - Yeehing Electronics

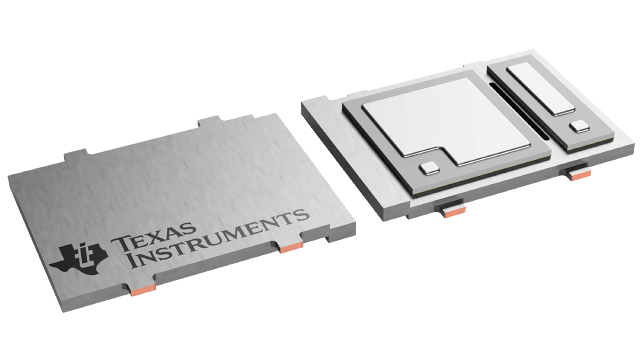

30-V, N channel synchronous buck NexFET™ power MOSFET, 5 mm x 3.5 mm LGA, 30 A
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.25 |
| 100 — 249 | 1.032 |
| 250 — 999 | 0.742 |
| 1,000 + | 0.39 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | MOSFET |
| RoHS | Y |
| Technology | Si |
| Mounting Style | SMD/SMT |
| Package / Case | PTAB-5 |
| Number of Channels | 2 Channel |
| Transistor Polarity | N-Channel |
| Vds - Drain-Source Breakdown Voltage | 30 V |
| Id - Continuous Drain Current | 30 A |
| Rds On - Drain-Source Resistance | 6.4 mOhms, 1.95 mOhms |
| Vgs th - Gate-Source Threshold Voltage | 1.9 V, 1.7 V |
| Vgs - Gate-Source Voltage | 10 V |
| Qg - Gate Charge | 9.2 nC, 40 nC |
| Minimum Operating Temperature | - 55 C |
| Maximum Operating Temperature | + 150 C |
| Pd - Power Dissipation | 8 W |
| Configuration | Dual |
| Channel Mode | Enhancement |
| Tradename | NexFET |
| Packaging | Reel |
| Height | 0.45 mm |
| Length | 5 mm |
| Series | CSD87384M |
| Transistor Type | 2 N-Channel |
| Type | Synchronous Buck NexFET Power Stage |
| Width | 3.5 mm |
| Brand | Texas Instruments |
| Forward Transconductance - Min | 67 S, 240 S |
| Fall Time | 7.6 ns, 8.2 ns |
| Product Type | MOSFET |
| Rise Time | 56 ns, 49 ns |
| Factory Pack Quantity | 250 |
| Subcategory | MOSFETs |
| Typical Turn-Off Delay Time | 14 ns, 29 ns |
| Typical Turn-On Delay Time | 8.7 ns, 17.5 ns |
For more information, please refer to datasheet
Documents
| CSD87384M Datasheet |
More Information
The CSD87384M NexFET™ Power Block II is a highly optimized design for synchronous buck applications offering high current and high efficiency capability in a small 5.0 mm × 3.5 mm outline. Optimized for 5 V gate drive applications, this product offers an efficient and flexible solution capable of providing a high density power supply when paired with any 5 V gate drive from an external controller or driver.
