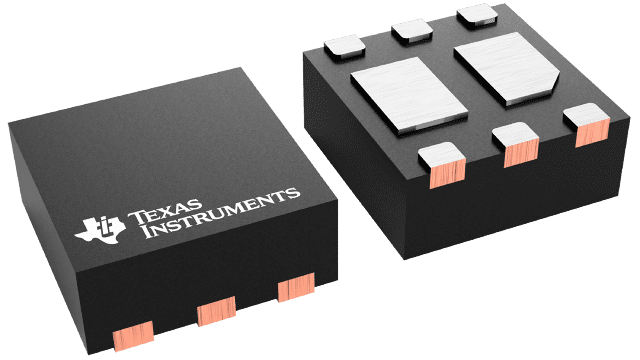

CSD87502Q2 Texas Instruments - Yeehing Electronics
30-V, N channel NexFET™ power MOSFET, dual SON 2 mm x 2, 42 mOhm, gate ESD protection
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 0.359 |
100 — 249 | 0.244 |
250 — 999 | 0.188 |
1,000 + | 0.09 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
CSD87502Q2 Datasheet |
More Information
The CSD87502Q2 is a 30 V, 27 mΩ N-Channel device with dual independent MOSFETs in a SON 2 x 2 mm plastic package. The two FETs were designed to be used in a half-bridge configuration for synchronous buck and other power supply applications. Additionally, these NexFET power MOSFETs can be used for adaptor, USB input protection, and battery charging applications. The dual FETs feature low drain-to-source on-resistance that minimizes losses and offers low component count for space-constrained applications.
