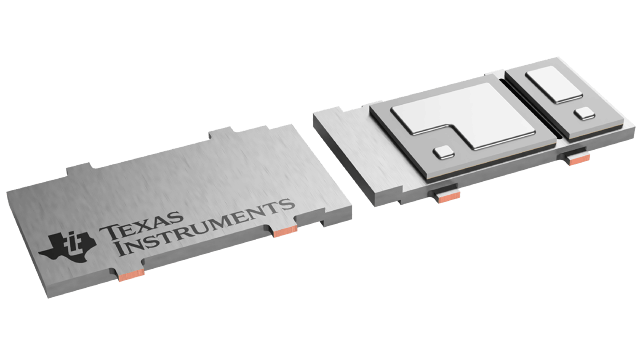

CSD87588NT Texas Instruments - Yeehing Electronics

30-V, N channel synchronous buck NexFET™ power MOSFET, 5 mm x 2.5 mm LGA, 25 A

Pricing (USD)

Quantity	Unit Price
1 — 99	1.093
100 — 249	0.903
250 — 999	0.649
1,000 +	0.34

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	MOSFET
RoHS	Y
Technology	Si
Mounting Style	SMD/SMT
Package / Case	PTAB-5
Number of Channels	2 Channel
Transistor Polarity	N-Channel
Vds - Drain-Source Breakdown Voltage	30 V
Id - Continuous Drain Current	25 A
Rds On - Drain-Source Resistance	10.4 mOhms, 3.5 mOhms
Vgs th - Gate-Source Threshold Voltage	1.9 V
Vgs - Gate-Source Voltage	20 V
Qg - Gate Charge	3.2 nC, 13.7 nC
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 150 C
Pd - Power Dissipation	6 W
Configuration	Dual
Tradename	NexFET
Packaging	Reel
Height	0.48 mm
Length	5 mm
Series	CSD87588N
Transistor Type	2 N-Channel
Type	Synchronous Buck NexFET Power Stage
Width	2.5 mm
Brand	Texas Instruments
Forward Transconductance - Min	43 S, 93 S
Fall Time	5 ns, 6.3 ns
Product Type	MOSFET
Rise Time	31.6 ns, 36.7 ns
Factory Pack Quantity	250
Subcategory	MOSFETs
Typical Turn-Off Delay Time	10.2 ns, 20.1 ns
Typical Turn-On Delay Time	7.3 ns, 12.1 ns

For more information, please refer to datasheet

Documents

CSD87588NT Datasheet

More Information

The CSD87588N NexFET™ power block II is a highly-optimized design for synchronous buck applications offering high current and high efficiency capability in a small 5 mm × 2.5 mm outline. Optimized for 5 V gate drive applications, this product offers an efficient and flexible solution capable of providing a high density power supply when paired with any 5 V gate driver from an external controller/driver.
