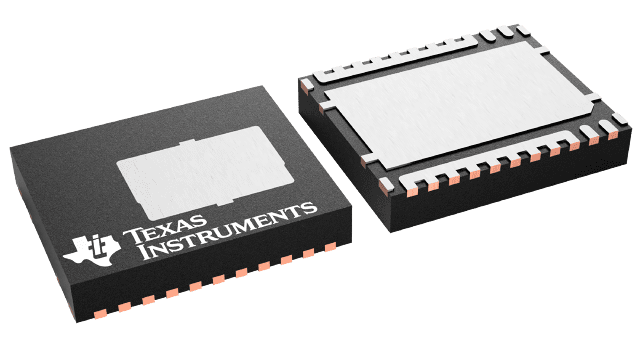

CSD88584Q5DC Texas Instruments - Yeehing Electronics
40-V, N channel synchronous buck NexFET™ power MOSFET, SON 5 mm x 6 mm Dual-Cool™ power block, 50 A
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 2.737 |
100 — 249 | 2.398 |
250 — 999 | 1.682 |
1,000 + | 0.95 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | MOSFET |
RoHS | E |
Technology | Si |
Mounting Style | SMD/SMT |
Package / Case | VSON-CLIP-22 |
Number of Channels | 2 Channel |
Transistor Polarity | N-Channel |
Vds - Drain-Source Breakdown Voltage | 40 V |
Id - Continuous Drain Current | - |
Rds On - Drain-Source Resistance | 680 uOhms |
Vgs th - Gate-Source Threshold Voltage | 1.2 V |
Vgs - Gate-Source Voltage | 20 V |
Qg - Gate Charge | 137 nC |
Minimum Operating Temperature | - 55 C |
Maximum Operating Temperature | + 150 C |
Pd - Power Dissipation | 12 W |
Configuration | Dual |
Channel Mode | Enhancement |
Tradename | NexFET |
Packaging | Reel |
Series | CSD88584Q5DC |
Brand | Texas Instruments |
Fall Time | 17 ns |
Product Type | MOSFET |
Rise Time | 24 ns |
Factory Pack Quantity | 250 |
Subcategory | MOSFETs |
Typical Turn-Off Delay Time | 53 ns |
Typical Turn-On Delay Time | 11 ns |
Unit Weight | 0.003549 oz |
For more information, please refer to datasheet
Documents
CSD88584Q5DC Datasheet |
