CSD88599Q5DCT Texas Instruments - Yeehing Electronics

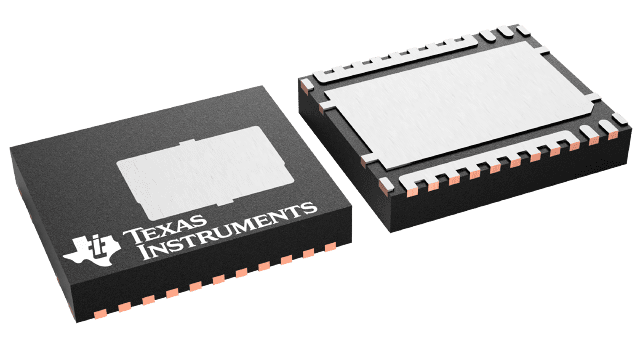

60-V, N channel synchronous buck NexFET™ power MOSFET, SON 5 mm x 6 mm Dual-Cool™ power block, 40 A
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 3.636 |
100 — 249 | 3.186 |
250 — 999 | 2.234 |
1,000 + | 1.26 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | MOSFET |
RoHS | E |
Technology | Si |
Mounting Style | SMD/SMT |
Package / Case | VSON-CLIP-22 |
Number of Channels | 2 Channel |
Transistor Polarity | N-Channel |
Vds - Drain-Source Breakdown Voltage | 60 V |
Id - Continuous Drain Current | 40 A |
Rds On - Drain-Source Resistance | 1.7 mOhms |
Vgs th - Gate-Source Threshold Voltage | 1.4 V |
Vgs - Gate-Source Voltage | 20 V |
Qg - Gate Charge | 43 nC |
Minimum Operating Temperature | - 55 C |
Maximum Operating Temperature | + 150 C |
Pd - Power Dissipation | 12 W |
Configuration | Dual |
Channel Mode | Enhancement |
Tradename | NexFET |
Packaging | Reel |
Series | CSD88599Q5DC |
Brand | Texas Instruments |
Fall Time | 3 ns |
Product Type | MOSFET |
Rise Time | 20 ns |
Factory Pack Quantity | 250 |
Subcategory | MOSFETs |
Typical Turn-Off Delay Time | 23 ns |
Typical Turn-On Delay Time | 9 ns |
Unit Weight | 0.003549 oz |
For more information, please refer to datasheet
Documents
CSD88599Q5DCT Datasheet |
More Information
The CSD88599Q5DC 60-V power block is an optimized design for high-current motor control applications, such as handheld, cordless garden and power tools. This device utilizes TIs stacked die technology in order to minimize parasitic inductances while offering a complete half bridge in a space saving thermally enhanced DualCool™ 5-mm × 6-mm package. With an exposed metal top, this power block device allows for simple heat sink application to draw heat out through the top of the package and away from the PCB, for superior thermal performance at the higher currents demanded by many motor control applications.
