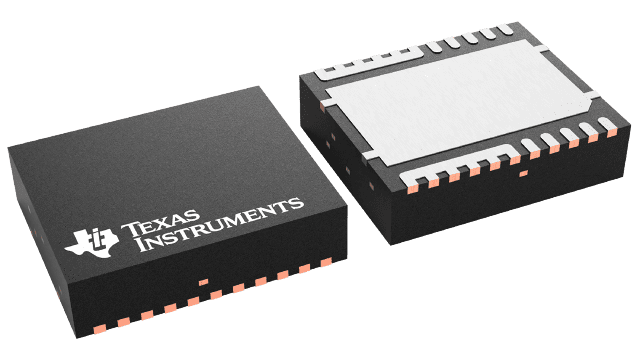

CSD95372AQ5M Texas Instruments - Yeehing Electronics

60A Synchronous Buck NexFET™ Power Stage with temperature sense

Pricing (USD)

Quantity	Unit Price
1 — 99	2.874
100 — 249	2.519
250 — 999	1.766
1,000 +	1.00

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Gate Drivers
RoHS	E
Type	High Side, Low Side
Mounting Style	SMD/SMT
Package / Case	LSON-CLIP-12
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 150 C
Series	CSD95372AQ5M
Packaging	Reel
Operating Temperature Range	- 55 C to + 150 C
Technology	Si
Brand	Texas Instruments
Moisture Sensitive	Yes
Product Type	Gate Drivers
Factory Pack Quantity	2500
Subcategory	PMIC - Power Management ICs
Tradename	NexFET
Unit Weight	0.006360 oz

For more information, please refer to datasheet

Documents

CSD95372AQ5M Datasheet

More Information

The CSD95372AQ5M NexFET™ Power Stage is a highly optimized design for use in a high power, high density Synchronous Buck converters. This product integrates the driver IC and NexFET technology to complete the power stage switching function. The driver IC has a built-in selectable diode emulation function that enables DCM operation to improve light load efficiency. This combination produces high current, high efficiency, and high speed switching capability in a small 5 × 6 mm outline package. It also integrates the temperature sensing functionality to simplify system design and improve accuracy. In addition, the PCB footprint has been optimized to help reduce design time and simplify the completion of the overall system design.
