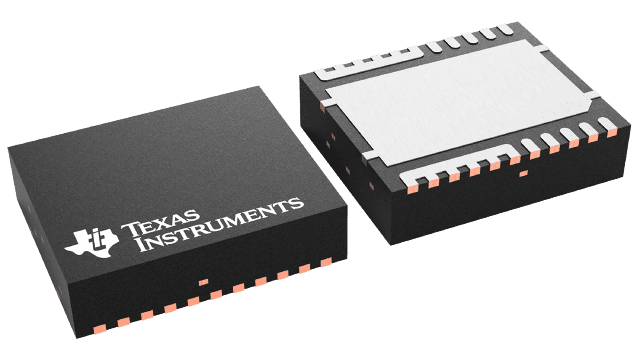

CSD95372BQ5M Texas Instruments - Yeehing Electronics

60A Synchronous Buck NexFET™ Smart Power Stage

Pricing (USD)

Quantity	Unit Price
1 — 99	3.668
100 — 249	3.214
250 — 999	2.254
1,000 +	1.27

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Gate Drivers
RoHS	E
Package / Case	LSON-CLIP-12
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 150 C
Series	CSD95372BQ5M
Packaging	Reel
Operating Temperature Range	- 55 C to + 150 C
Technology	Si
Brand	Texas Instruments
Moisture Sensitive	Yes
Product Type	Gate Drivers
Factory Pack Quantity	2500
Subcategory	PMIC - Power Management ICs
Tradename	NexFET
Unit Weight	0.005813 oz

For more information, please refer to datasheet

Documents

CSD95372BQ5M Datasheet

More Information

The CSD95372BQ5M NexFET™ smart power stage is a highly optimized design for use in a high-power, high-density Synchronous Buck converter. This product integrates the Driver IC and Power MOSFETs to complete the power stage switching function. This combination produces high-current, high-efficiency, and high-speed switching capability in a small 5-mm × 6-mm outline package. It also integrates the accurate current sensing and temperature sensing functionality to simplify system design and improve accuracy. In addition, the PCB footprint has been optimized to help reduce design time and simplify the completion of the overall system design.
