Texas Instruments
CSD95373BQ5M
CSD95373BQ5M
Couldn't load pickup availability

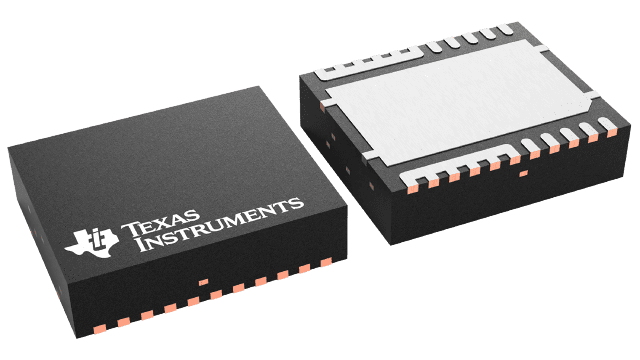

CSD95373BQ5M Texas Instruments - Yeehing Electronics
45A Synchronous Buck NexFET™ Smart Power Stage
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.081 |
| 100 — 249 | 2.699 |
| 250 — 999 | 1.893 |
| 1,000 + | 1.07 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Gate Drivers |
| RoHS | E |
| Minimum Operating Temperature | - 55 C |
| Maximum Operating Temperature | + 150 C |
| Series | CSD95373BQ5M |
| Packaging | Reel |
| Operating Temperature Range | - 55 C to + 150 C |
| Technology | Si |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Gate Drivers |
| Factory Pack Quantity | 2500 |
| Subcategory | PMIC - Power Management ICs |
| Tradename | NexFET |
| Unit Weight | 0.005700 oz |
For more information, please refer to datasheet
Documents
| CSD95373BQ5M Datasheet |
More Information
The CSD95373BQ5M NexFET™ smart power stage is a highly optimized design for use in a high-power, high-density synchronous buck converter. This product integrates the driver IC and power MOSFETs to complete the power stage switching function. This combination produces high-current, high-efficiency, and high-speed switching capability in a small 5-mm × 6-mm outline package. It also integrates the accurate current sensing and temperature sensing functionality to simplify system design and improve accuracy. In addition, the PCB footprint has been optimized to help reduce design time and simplify the completion of the overall system design.
