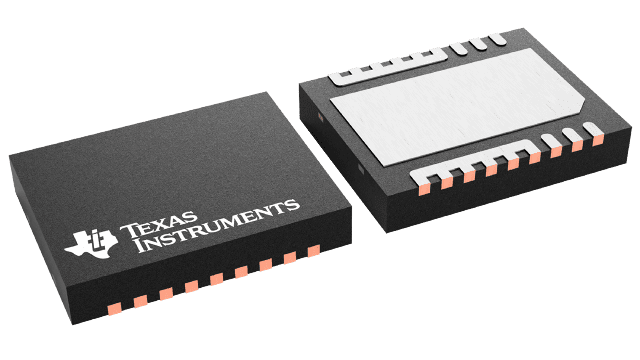

CSD95377Q4M Texas Instruments - Yeehing Electronics
20 V 35 A SON 3.5 x 4.5 mm synchronous buck NexFET™ power stage
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.821 |
| 100 — 249 | 1.504 |
| 250 — 999 | 1.08 |
| 1,000 + | 0.57 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Gate Drivers |
| RoHS | E |
| Product | Driver ICs - Various |
| Type | High Side, Low Side |
| Mounting Style | SMD/SMT |
| Package / Case | VSON-CLIP-8 |
| Number of Drivers | 1 Driver |
| Number of Outputs | 1 Output |
| Output Current | 30 A |
| Rise Time | 60 ns |
| Fall Time | 60 ns |
| Supply Voltage - Min | 4.5 V |
| Supply Voltage - Max | 5.5 V |
| Operating Supply Current | 8.6 mA |
| Pd - Power Dissipation | 8 W |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 150 C |
| Series | CSD95377Q4M |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 150 C |
| Technology | Si |
| Brand | Texas Instruments |
| Shutdown | No Shutdown |
| Moisture Sensitive | Yes |
| Product Type | Gate Drivers |
| Factory Pack Quantity | 2500 |
| Subcategory | PMIC - Power Management ICs |
| Tradename | NexFET |
| Unit Weight | 0.001982 oz |
For more information, please refer to datasheet
Documents
| CSD95377Q4M Datasheet |
More Information
The CSD95377Q4M NexFET™ power stage is a highly-optimized design for use in a high power, high density synchronous buck converter. This product integrates the driver IC and power MOSFETs to complete the power stage switching function. The driver IC has built-in selectable diode emulation function enables Discontinuous Conduction Mode (DCM) operation to improve light load efficiency. This combination produces high-current, high-efficiency, and high-speed switching capability in a small 3.5 mm × 4.5 mm outline package. In addition, the PCB footprint has been optimized to help reduce design time and simplify the completion of the overall system design.
