Texas Instruments

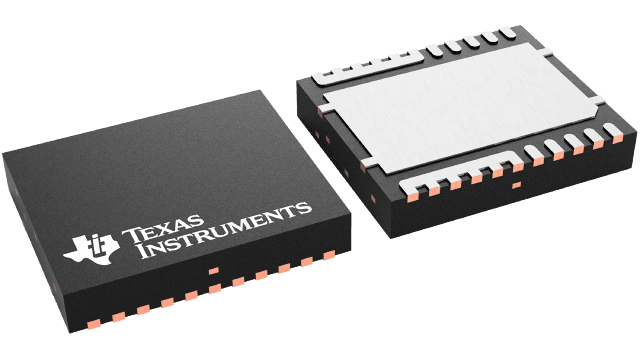

CSD95378BQ5MC
CSD95378BQ5MC
Couldn't load pickup availability
CSD95378BQ5MC Texas Instruments - Yeehing Electronics
60A Synchronous Buck NexFET™ Smart Power Stage with TAO offset and DualCool™ package
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.036 |
| 100 — 249 | 3.536 |
| 250 — 999 | 2.48 |
| 1,000 + | 1.17 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Gate Drivers |
| RoHS | E |
| Type | High Side |
| Mounting Style | SMD/SMT |
| Package / Case | VSON-12 Clip |
| Rise Time | - |
| Fall Time | - |
| Minimum Operating Temperature | - 55 C |
| Maximum Operating Temperature | + 150 C |
| Series | CSD95378BQ5MC |
| Packaging | Reel |
| Operating Temperature Range | - 55 C to + 150 C |
| Technology | Si |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Gate Drivers |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Tradename | NexFET |
For more information, please refer to datasheet
Documents
| CSD95378BQ5MC Datasheet |
More Information
The CSD95378BQ5MC NexFET™ smart power stage is a highly-optimized design for use in a high-power, high-density synchronous buck converter. This product integrates the driver IC and power MOSFETs to complete the power stage switching function. This combination produces high-current, high-efficiency, and high-speed switching capability in a small 5-mm × 6-mm outline package. It also integrates the accurate current sensing and temperature sensing functionality to simplify system design and improve accuracy. In addition, the PCB footprint is optimized to help reduce design time and simplify the completion of the overall system design.
