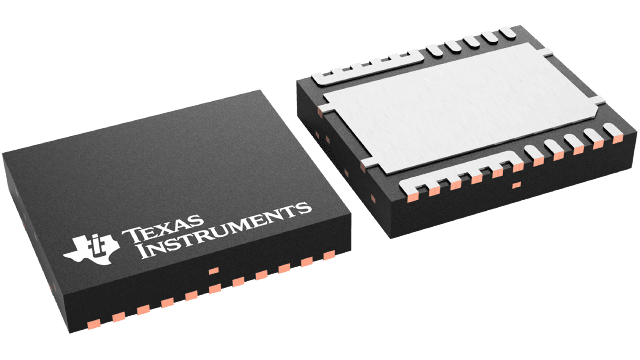

CSD95472Q5MC Texas Instruments - Yeehing Electronics

20 V 60 A SON 5 x 6 mm DualCool synchronous buck NexFET™ power stage

Pricing (USD)

Quantity	Unit Price
1 — 99	3.822
100 — 249	3.116
250 — 999	2.449
1,000 +	1.45

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Gate Drivers
RoHS	Y
Product	Driver ICs - Various
Type	High Side
Mounting Style	SMD/SMT
Package / Case	VSON-12
Number of Drivers	1 Driver
Number of Outputs	1 Output
Output Current	60 A
Supply Voltage - Min	4.5 V
Supply Voltage - Max	16 V
Pd - Power Dissipation	12 W
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 150 C
Series	CSD95472Q5MC
Packaging	Reel
Operating Temperature Range	- 55 C to + 150 C
Output Voltage	5.5 V
Technology	Si
Brand	Texas Instruments
Moisture Sensitive	Yes
Product Type	Gate Drivers
Factory Pack Quantity	2500
Subcategory	PMIC - Power Management ICs
Tradename	DualCool
Unit Weight	0.004452 oz

For more information, please refer to datasheet

Documents

CSD95472Q5MC Datasheet

More Information

The CSD95472Q5MC NexFET™ smart power stage is a highly optimized design for use in a high-power, high-density synchronous buck converter. This product integrates the driver IC and Power MOSFETs to complete the power stage switching function. This combination produces high-current, high-efficiency, and high-speed switching capability in a small 5 mm × 6 mm outline package. It also integrates the accurate current sensing and temperature sensing functionality to simplify system design and improve accuracy. In addition, the PCB footprint has been optimized to help reduce design time and simplify the completion of the overall system design.
