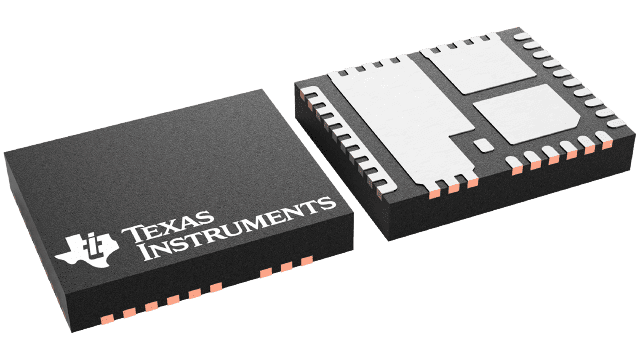

CSD95480RWJ Texas Instruments - Yeehing Electronics

70A Synchronous Buck NexFET™ Smart Power Stage in an Industry Standard Footprint

Pricing (USD)

Quantity	Unit Price
1 — 99	3.741
100 — 249	3.05
250 — 999	2.397
1,000 +	1.42

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

CSD95480RWJ Datasheet

More Information

The CSD95480RWJ NexFET™ power stage is a highly optimized design for use in a high-power, high-density synchronous buck converter. This product integrates the driver IC and power MOSFETs to complete the power stage switching function. This combination produces high-current, high-efficiency, and high-speed switching capability in a small 5-mm × 6-mm outline package. It also integrates the accurate current sensing and temperature sensing functionality to simplify system design and improve accuracy. In addition, the PCB footprint has been optimized to help reduce design time and simplify the completion of the overall system design.
