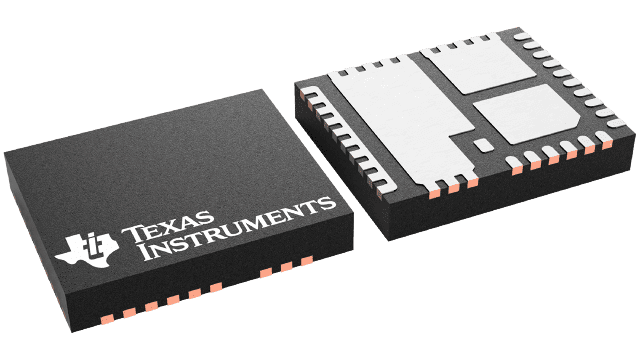

CSD95480RWJT


YeeHing #: Y012-CSD95480RWJT
Inventory: 4200

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

CSD95480RWJT Texas Instruments - Yeehing Electronics

70A Synchronous Buck NexFET™ Smart Power Stage in an Industry Standard Footprint

Pricing (USD)

Quantity Unit Price
1 — 99 4.49
100 — 249 3.66
250 — 999 2.877
1,000 + 1.71

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Switching Controllers
RoHS Y
Topology Buck
Number of Outputs 1 Output
Switching Frequency 1.25 MHz
Duty Cycle - Max 85 %
Input Voltage 4.5 V to 16 V
Output Voltage 5.5 V
Output Current 70 A
Minimum Operating Temperature - 55 C
Maximum Operating Temperature + 150 C
Mounting Style SMD/SMT
Package / Case VQFN-CLIP-41
Packaging Reel
Operating Temperature Range - 55 C to + 150 C
Product Switching Controllers
Series CSD95480RWJ
Brand Texas Instruments
Shutdown Shutdown
Moisture Sensitive Yes
Operating Supply Voltage 4.5 V to 5.5 V
Product Type Switching Controllers
Factory Pack Quantity 250
Subcategory PMIC - Power Management ICs
Tradename NexFET
Unit Weight 0.006028 oz

For more information, please refer to datasheet

Documents

CSD95480RWJT Datasheet

More Information

The CSD95480RWJ NexFET™ power stage is a highly optimized design for use in a high-power, high-density synchronous buck converter. This product integrates the driver IC and power MOSFETs to complete the power stage switching function. This combination produces high-current, high-efficiency, and high-speed switching capability in a small 5-mm × 6-mm outline package. It also integrates the accurate current sensing and temperature sensing functionality to simplify system design and improve accuracy. In addition, the PCB footprint has been optimized to help reduce design time and simplify the completion of the overall system design.
