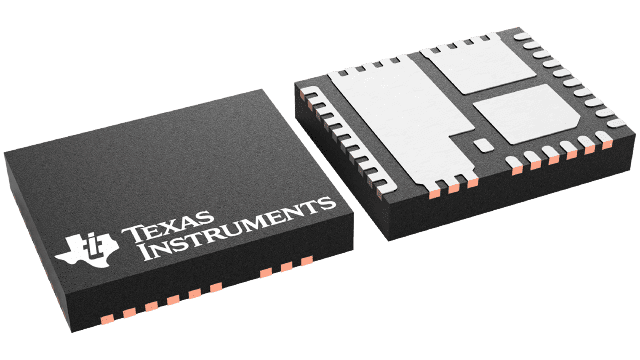

CSD95481RWJT Texas Instruments - Yeehing Electronics
60A Synchronous Buck NexFET™ Smart Power Stage in an Industry Standard Footprint
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 3.904 |
100 — 249 | 3.183 |
250 — 999 | 2.502 |
1,000 + | 1.70 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Minimum Operating Temperature | -55 |
Maximum Operating Temperature | 150 |
Factory Pack Quantity | 250 |
Package | Pins | VQFN-CLIP (RWJ) | 41 |
For more information, please refer to datasheet
Documents
CSD95481RWJT Datasheet |
More Information
The CSD95481RWJ NexFET™ power stage is a highly optimized design for use in a high-power, high-density synchronous buck converter. This product integrates the driver IC and power MOSFETs to complete the power stage switching function. This combination produces high-current, high-efficiency, and high-speed switching capability in a small 5-mm × 6-mm outline package. It also integrates the accurate current sensing and temperature sensing functionality to simplify system design and improve accuracy. In addition, the PCB footprint has been optimized to help reduce design time and simplify the completion of the overall system design.
