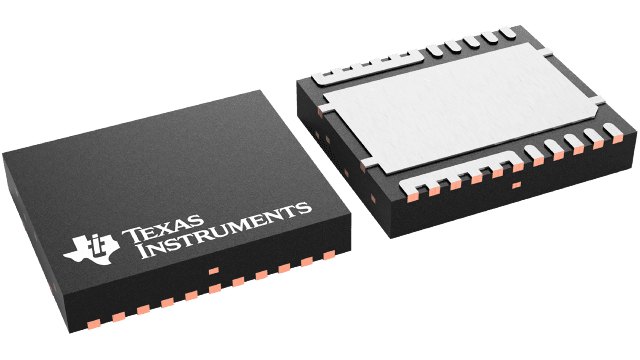

CSD95491Q5MC Texas Instruments - Yeehing Electronics
20 V 60 A SON 5 x 6 mm DualCool synchronous buck NexFET™ power stage
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 3.48 |
100 — 249 | 3.05 |
250 — 999 | 2.138 |
1,000 + | 1.21 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Switching Controllers |
RoHS | Y |
Topology | Buck |
Number of Outputs | 1 Output |
Switching Frequency | 1.25 MHz |
Duty Cycle - Max | 85 % |
Input Voltage | 4.5 V to 16 V |
Output Voltage | 5.5 V |
Output Current | 60 A |
Minimum Operating Temperature | - 55 C |
Maximum Operating Temperature | + 150 C |
Mounting Style | SMD/SMT |
Package / Case | VSON-CLIP-12 |
Packaging | Reel |
Description/Function | Synchronous buck smart power stage |
Isolation | Non-Isolated |
Operating Temperature Range | - 55 C to + 150 C |
Product | Switching Controllers |
Series | CSD95491Q5MC |
Brand | Texas Instruments |
Shutdown | Shutdown |
Moisture Sensitive | Yes |
Operating Supply Voltage | 4.5 V to 5.5 V |
Product Type | Switching Controllers |
Factory Pack Quantity | 250 |
Subcategory | PMIC - Power Management ICs |
Tradename | NexFET |
Unit Weight | 0.004310 oz |
For more information, please refer to datasheet
Documents
CSD95491Q5MC Datasheet |
More Information
The CSD95491Q5MC NexFET™ power stage is a highly optimized design for use in a high-power, high-density synchronous buck converter. This product integrates the driver IC and power MOSFETs to complete the power stage switching function. This combination produces high-current, high-efficiency, and high-speed switching capability in a small 5-mm × 6-mm outline package. It also integrates the accurate current sensing and temperature sensing functionality to simplify system design and improve accuracy. In addition, the PCB footprint has been optimized to help reduce design time and simplify the completion of the overall system design.
