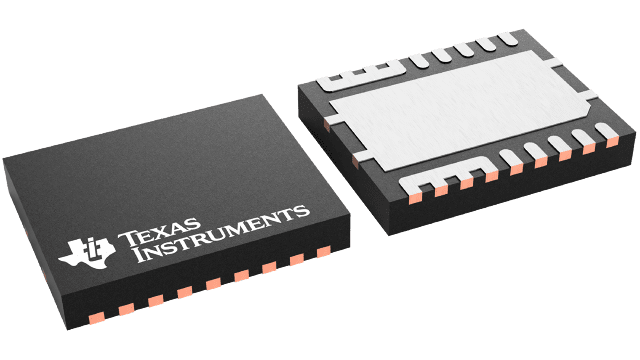

CSD95492QVMT Texas Instruments - Yeehing Electronics

20A Synchronous Buck NexFET Smart Power Stage in small 4x5 SON Package

Pricing (USD)

Quantity	Unit Price
1 — 99	3.054
100 — 249	2.676
250 — 999	1.876
1,000 +	1.06

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Controllers
RoHS	Y
Topology	Buck
Number of Outputs	1 Output
Switching Frequency	1.25 MHz
Duty Cycle - Max	85 %
Input Voltage	4.5 V to 16 V
Output Voltage	5.5 V
Output Current	20 A
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 150 C
Mounting Style	SMD/SMT
Package / Case	VSON-CLIP-18
Packaging	Reel
Description/Function	Syncrhonous buck smart powe stage
Isolation	Non-Isolated
Operating Temperature Range	- 55 C to + 150 C
Product	Switching Controllers
Series	CSD95492QVM
Brand	Texas Instruments
Shutdown	Shutdown
Moisture Sensitive	Yes
Operating Supply Voltage	4.5 V to 5.5 V
Product Type	Switching Controllers
Factory Pack Quantity	250
Subcategory	PMIC - Power Management ICs
Tradename	NexFET
Unit Weight	0.003178 oz

For more information, please refer to datasheet

Documents

CSD95492QVMT Datasheet

More Information

The CSD95492QVM NexFET™ power stage is a highly optimized design for use in a high-power, high-density synchronous buck converter. This product integrates the driver IC and power MOSFETs to complete the power stage switching function. This combination produces high-current, high-efficiency, and high-speed switching capability in a small 4-mm × 5-mm outline package. It also integrates the accurate current sensing and temperature sensing functionality to simplify system design and improve accuracy. In addition, the PCB footprint has been optimized to help reduce design time and simplify the completion of the overall system design.
