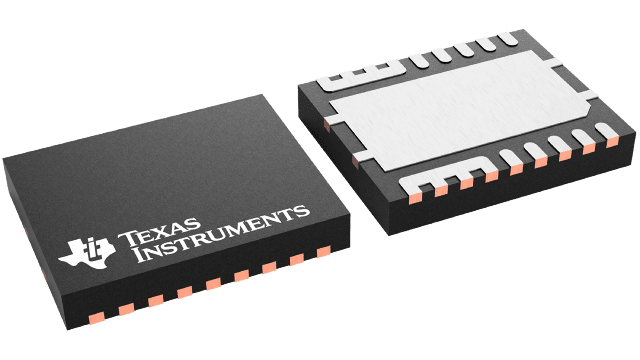

CSD95496QVM Texas Instruments - Yeehing Electronics

40A Synchronous Buck NexFET Smart Power Stage in small 4x5 SON Package

Pricing (USD)

Quantity	Unit Price
1 — 99	2.874
100 — 249	2.519
250 — 999	1.766
1,000 +	1.00

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

CSD95496QVM Datasheet

More Information

The CSD95496QVM NexFET™ power stage is a highly optimized design for use in a high-power, high-density synchronous buck converter. This product integrates the driver IC and power MOSFETs to complete the power stage switching function. This combination produces high-current, high-efficiency, and high-speed switching capability in a small 4-mm × 5-mm outline package. It also integrates the accurate current sensing and temperature sensing functionality to simplify system design and improve accuracy. In addition, the PCB footprint has been optimized to help reduce design time and simplify the completion of the overall system design.
