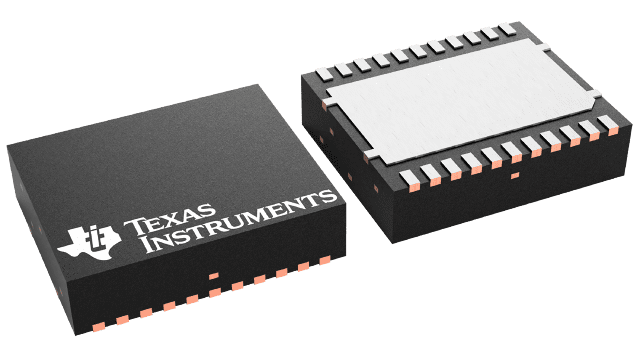

CSD96371Q5M


YeeHing #: Y012-CSD96371Q5M
Inventory: 7000

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

CSD96371Q5M Texas Instruments - Yeehing Electronics

20V 30A SON 5 x 6mm synchronous buck NexFET™ power stage

Pricing (USD)

Quantity Unit Price
1 — 99 2.545
100 — 249 2.23
250 — 999 1.564
1,000 + 0.88

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Gate Drivers
RoHS E
Mounting Style SMD/SMT
Package / Case LSON-CLIP-22
Minimum Operating Temperature - 55 C
Maximum Operating Temperature + 150 C
Series CSD96371Q5M
Packaging Reel
Operating Temperature Range - 55 C to + 150 C
Technology Si
Brand Texas Instruments
Moisture Sensitive Yes
Product Type Gate Drivers
Rds On - Drain-Source Resistance -
Factory Pack Quantity 2500
Subcategory PMIC - Power Management ICs
Tradename NexFET

For more information, please refer to datasheet

Documents

CSD96371Q5M Datasheet

More Information

The CSD96371Q5M NexFET Power Stage has an optimized design for use in a high power high density Synchronous Buck converter. This product integrates the gate driver IC and Power MOSFETs to complete the power stage switching function. This combination produces high current, high efficiency, and high speed switching capability in a small 5-mm × 6-mm outline package. In addition, the PCB footprint has been optimized to help reduce design time and simplify the completion of the overall system design.
