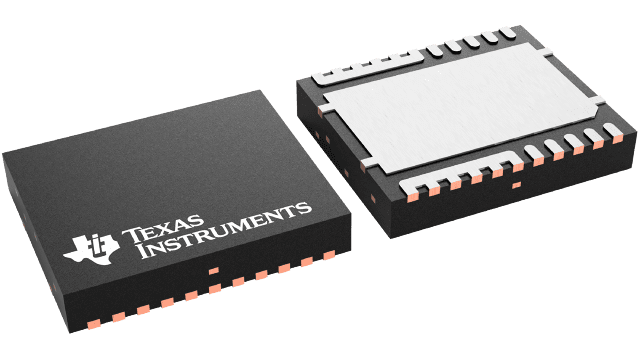

CSD96497Q5MCT Texas Instruments - Yeehing Electronics

65A synchronous buck NexFET smart power stage with DualCool package

Pricing (USD)

Quantity	Unit Price
1 — 99	4.725
100 — 249	3.852
250 — 999	3.028
1,000 +	1.80

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

CSD96497Q5MCT Datasheet

More Information

The CSD96497 NexFET™ power stage is a highly optimized design for use in a high-power, high-density synchronous buck converter. This product integrates the driver IC and power MOSFETs to complete the power stage switching function. This combination produces high-current, high-efficiency, and high-speed switching capability in a small 5-mm × 6-mm outline package. It also integrates accurate current sensing and temperature sensing functionality to simplify system design and improve accuracy. In addition, the PCB footprint has been optimized to help reduce design time and simplify the completion of the overall system design.
