CSD97370AQ5M


YeeHing #: Y012-CSD97370AQ5M
Inventory: 2400

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

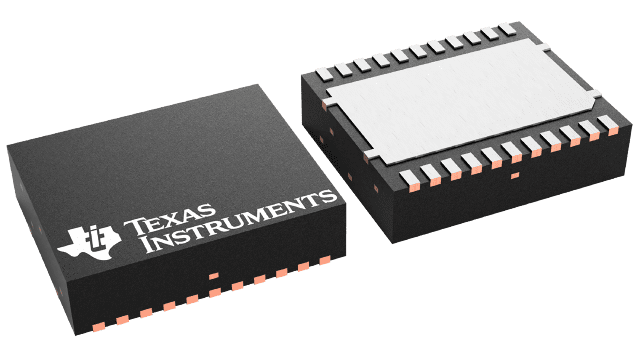

CSD97370AQ5M Texas Instruments - Yeehing Electronics

30 V 25 A SON 5 x 6 mm synchronous buck NexFET™ power stage with 4 V PWM logic level high

Pricing (USD)

Quantity Unit Price
1 — 99 2.382
100 — 249 2.087
250 — 999 1.463
1,000 + 2.06

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Gate Drivers
RoHS E
Mounting Style SMD/SMT
Package / Case LSON-CLIP-22
Minimum Operating Temperature - 55 C
Maximum Operating Temperature + 150 C
Series CSD97370AQ5M
Packaging Reel
Operating Temperature Range - 55 C to + 150 C
Technology Si
Brand Texas Instruments
Moisture Sensitive Yes
Product Type Gate Drivers
Factory Pack Quantity 2500
Subcategory PMIC - Power Management ICs
Tradename NexFET
Unit Weight 0.005855 oz

For more information, please refer to datasheet

Documents

CSD97370AQ5M Datasheet

More Information

The CSD97370AQ5M NexFET Power Stage is an optimized design for use in a high power, high density Synchronous Buck converter. This product integrates an enhanced gate driver IC and Power Block Technology to complete the power stage switching function. This combination produces a high current, high efficiency, high speed switching device and delivers an excellent thermal solution in a small 5-mm × 6-mm outline package due to its large ground based thermal pad. In addition, the PCB footprint has been optimized to help reduce design time and simplify the completion of the overall system design.
