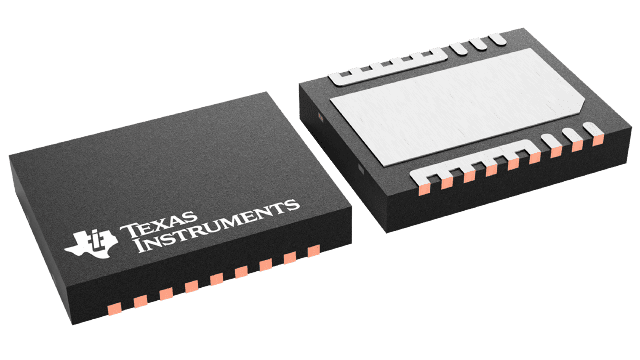

CSD97374Q4M Texas Instruments - Yeehing Electronics
30V 25A SON 3.5 x 4.5mm synchronous buck NexFET™ power stage
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.821 |
100 — 249 | 1.504 |
250 — 999 | 1.08 |
1,000 + | 0.57 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Gate Drivers |
RoHS | E |
Type | High Side |
Mounting Style | SMD/SMT |
Package / Case | VSON-8 Clip |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 150 C |
Series | CSD97374Q4M |
Packaging | Reel |
Technology | Si |
Brand | Texas Instruments |
Moisture Sensitive | Yes |
Product Type | Gate Drivers |
Factory Pack Quantity | 2500 |
Subcategory | PMIC - Power Management ICs |
Tradename | NexFET |
Unit Weight | 0.001831 oz |
For more information, please refer to datasheet
Documents
CSD97374Q4M Datasheet |
More Information
The CSD97374Q4M NexFET™ power stage is a highly optimized design for use in a high-power, high-density synchronous buck converter. This product integrates the driver IC and NexFET technology to complete the power stage switching function. The driver IC has a built-in selectable diode emulation function that enables DCM operation to improve light load efficiency. In addition, the driver IC supports ULQ mode that enables Connected Standby for Windows 8. With the PWM input in tri-state, quiescent current is reduced to 130 µA, with immediate response. When SKIP# is held at tri-state, the current is reduced to 8 µA (typically 20 µs is required to resume switching). This combination produces a high-current, high-efficiency, and high-speed switching device in a small 3.5-mm × 4.5-mm outline package. In addition, the PCB footprint has been optimized to help reduce design time and simplify the completion of the overall system design.
