CSD97395Q4M Texas Instruments - Yeehing Electronics

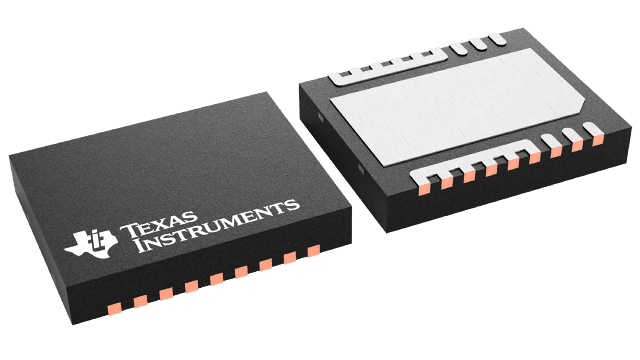

CSD97395Q4M High Frequency Synchronous Buck NexFET™ Power Stage
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.595 |
| 100 — 249 | 1.317 |
| 250 — 999 | 0.946 |
| 1,000 + | 0.50 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Gate Drivers |
| RoHS | E |
| Type | High Side |
| Mounting Style | SMD/SMT |
| Package / Case | VSON-CLIP-8 |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 150 C |
| Series | CSD97395Q4M |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 150 C |
| Technology | Si |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Gate Drivers |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Tradename | NexFET |
| Unit Weight | 0.001753 oz |
For more information, please refer to datasheet
Documents
| CSD97395Q4M Datasheet |
More Information
The CSD97395Q4M NexFET7trade; Power Stage is a highly optimized design for use in a high-power, high-density synchronous buck converter. This product integrates the driver IC and NexFET technology to complete the power stage switching function. The driver IC has a built-in selectable diode emulation function that enables DCM operation to improve light load efficiency. In addition, the driver IC supports ULQ mode that enables connected standby for Windows® 8. With the PWM input in tri-state, quiescent current is reduced to 130 µA, with immediate response. When SKIP# is held at tri-state, the current is reduced to 8 µA (typically 20 µs is required to resume switching). This combination produces a high current, high efficiency, and high speed switching device in a small 3.5 × 4.5 mm outline package. In addition, the PCB footprint is optimized to help reduce design time and simplify the completion of the overall system design.
