CSD97396Q4MT


YeeHing #: Y012-CSD97396Q4MT
Inventory: 8400

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

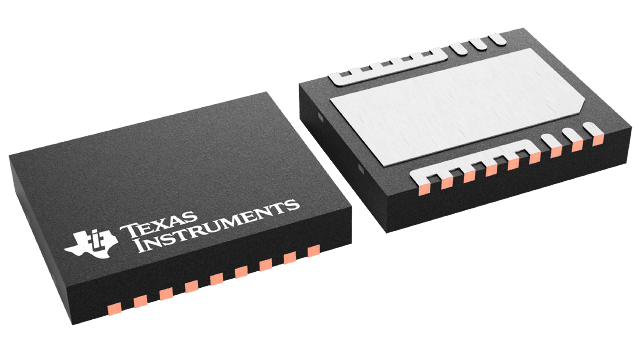

CSD97396Q4MT Texas Instruments - Yeehing Electronics

30A Synchronous Buck NexFET Power Stage

Pricing (USD)

Quantity Unit Price
1 — 99 2.079
100 — 249 1.717
250 — 999 1.233
1,000 + 0.65

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Gate Drivers
RoHS N
Product Driver ICs - Various
Type High Side, Low Side
Mounting Style SMD/SMT
Package / Case SON-9
Number of Drivers 1 Driver
Number of Outputs 1 Output
Output Current 30 A
Rise Time 60 ns
Fall Time 60 ns
Supply Voltage - Min 4.5 V
Supply Voltage - Max 5.5 V
Operating Supply Current 7.8 mA
Pd - Power Dissipation 8 W
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 150 C
Series CSD97396Q4M
Packaging Reel
Features Synchronous
Operating Temperature Range - 40 C to + 150 C
Technology Si
Brand Texas Instruments
Shutdown No Shutdown
Moisture Sensitive Yes
Product Type Gate Drivers
Factory Pack Quantity 250
Subcategory PMIC - Power Management ICs
Tradename NexFET
Unit Weight 0.002025 oz

For more information, please refer to datasheet

Documents

CSD97396Q4MT Datasheet

More Information

The CSD97396Q4M NexFET Power Stage is a highly optimized design for use in a high-power, high-density synchronous buck converter. This product integrates the driver IC and NexFET technology to complete the power stage switching function. The driver IC has a built-in selectable diode emulation function that enables DCM operation to improve light load efficiency. In addition, the driver IC supports ULQ mode that enables connected standby for Windows 8. With the PWM input in tri-state, quiescent current is reduced to 130 µA, with immediate response. When SKIP# is held at tri-state, the current is reduced to 8 µA (typically 20 µs is required to resume switching). This combination produces a high current, high efficiency, and high speed switching device in a small 3.5 × 4.5 mm outline package. In addition, the PCB footprint is optimized to help reduce design time and simplify the completion of the overall system design.
