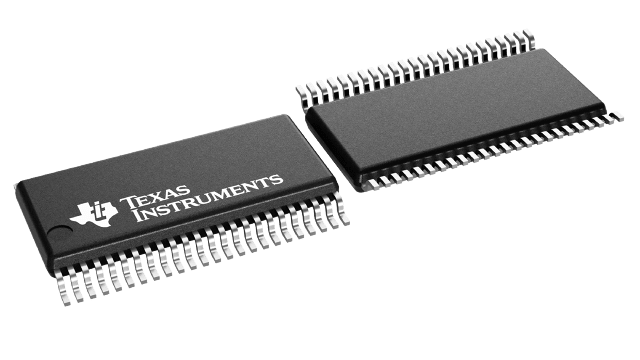

CVMEH22501AIDGVREP Texas Instruments - Yeehing Electronics
Enhanced Product 8-Bit Universal Bus Transceiver And Two 1-Bit Bus Transceivers
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | None |
| 100 — 249 | None |
| 250 — 999 | None |
| 1,000 + | None |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Universal Bus Functions |
| RoHS | Y |
| Logic Type | CMOS |
| Logic Family | VME |
| Number of Circuits | 1 |
| Propagation Delay Time | 10.5 ns |
| Supply Voltage - Max | 3.45 V |
| Supply Voltage - Min | 3.15 V |
| Minimum Operating Temperature | - 55 C |
| Maximum Operating Temperature | + 125 C |
| Package / Case | TVSOP-48 |
| Packaging | Reel |
| Function | Universal Bus Transceiver |
| Height | 1.05 mm |
| Length | 9.7 mm |
| Output Type | 3-State |
| Series | SN74VMEH22501A-EP |
| Width | 4.4 mm |
| Brand | Texas Instruments |
| Mounting Style | SMD/SMT |
| High Level Output Current | - 48 mA |
| Low Level Output Current | 64 mA |
| Operating Supply Voltage | 3.3 V |
| Polarity | Non-Inverting |
| Product Type | Universal Bus Functions |
| Factory Pack Quantity | 2000 |
| Subcategory | Logic ICs |
| Part # Aliases | V62/05606-01YE |
| Unit Weight | 0.004356 oz |
For more information, please refer to datasheet
Documents
| CVMEH22501AIDGVREP Datasheet |
More Information
The SN74VMEH22501A-EP 8-bit universal bus transceiver has two integral 1-bit three-wire bus transceivers and is designed for 3.3-V VCC operation with 5-V tolerant inputs. The UBT transceiver allows transparent, latched, and flip-flop modes of data transfer, and the separate LVTTL input and outputs on the bus transceivers provide a feedback path for control and diagnostics monitoring. This device provides a high-speed interface between cards operating at LVTTL logic levels and VME64, VME64x, or VME320(2) backplane topologies.
