Texas Instruments
CY29FCT52CTQCT
CY29FCT52CTQCT
Regular price
$1.53 USD
Regular price
Sale price
$1.53 USD
Unit price
per
Couldn't load pickup availability

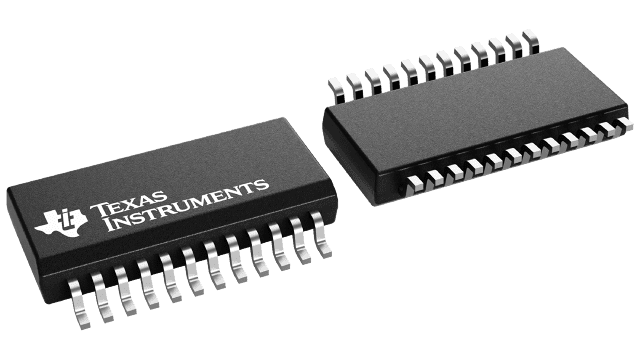

CY29FCT52CTQCT Texas Instruments - Yeehing Electronics
Octal Registered Transceivers with 3-State Outputs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.013 |
| 100 — 249 | 3.272 |
| 250 — 999 | 2.571 |
| 1,000 + | 1.53 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Bus Transceivers |
| RoHS | Y |
| Logic Family | 29 |
| Input Level | TTL |
| Output Level | TTL |
| Output Type | 3-State |
| High Level Output Current | - 32 mA |
| Low Level Output Current | 64 mA |
| Propagation Delay Time | 6.3 ns |
| Supply Voltage - Max | 5.25 V |
| Supply Voltage - Min | 4.75 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Package / Case | QSOP-24 |
| Packaging | Reel |
| Function | Registered Transceiver |
| Height | 1.5 mm |
| Length | 8.75 mm |
| Number of Circuits | 8 |
| Product | CMOS |
| Series | CY29FCT52T |
| Technology | CMOS |
| Width | 4 mm |
| Brand | Texas Instruments |
| Mounting Style | SMD/SMT |
| Number of Channels | 8 |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 4.75 V to 5.25 V |
| Polarity | Non-Inverting |
| Product Type | Bus Transceivers |
| Factory Pack Quantity | 2500 |
| Subcategory | Logic ICs |
| Triggering Type | Positive Edge |
| Unit Weight | 0.059966 oz |
For more information, please refer to datasheet
Documents
| CY29FCT52CTQCT Datasheet |
More Information
The CY29FCT52T has two 8-bit back-to-back registers that store data flowing in both directions between two bidirectional buses. Separate clock, clock enable, and 3-state output-enable signals are provided for each register. Both A outputs and B outputs are specified to sink 64 mA.
