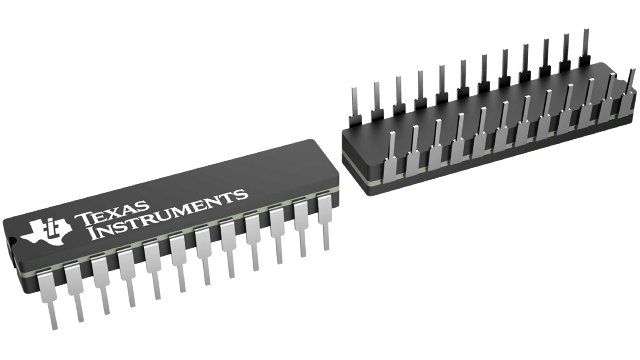

CY29FCT818ATDMB Texas Instruments - Yeehing Electronics

Diagnostic Scan Register

Pricing (USD)

Quantity	Unit Price
1 — 99	116.038
100 — 249	103.145
250 — 999	84.791
1,000 +	53.09

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

CY29FCT818ATDMB Datasheet

More Information

The CY29FCT818T contains a high-speed 8-bit general-purpose data pipeline register and a high-speed 8-bit shadow register. The general-purpose register can be used in an 8-bit-wide data path for a normal system application. The shadow register is designed for applications such as diagnostics in sequential circuits, where it is desirable to load known data at a specific location in the circuit and to read the data at that location.
