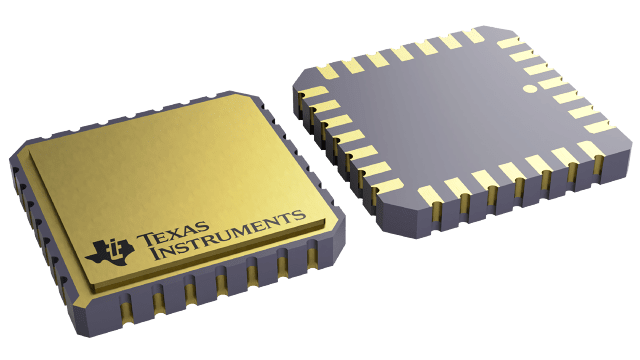

CY54FCT480BTLMB Texas Instruments - Yeehing Electronics
Dual 8-Bit Parity Generator/Checker
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 140.328 |
100 — 249 | 128.634 |
250 — 999 | 116.94 |
1,000 + | 98.23 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
CY54FCT480BTLMB Datasheet |
More Information
The x92FCT480T devices are high-speed, dual, 8-bit parity generators/checkers. Each parity generator/checker accepts eight data bits and one parity bit as inputs, and generates a sum and parity-error (ERROR) output. These devices can be used in odd-parity systems. ERROR is an open-drain output designed for easy expansion of the word width by a wired-OR connection of several x92FCT480T devices. Because no additional logic is needed, the parity-generation or parity-checking times remain the same as for an individual x92FCT480T device.
