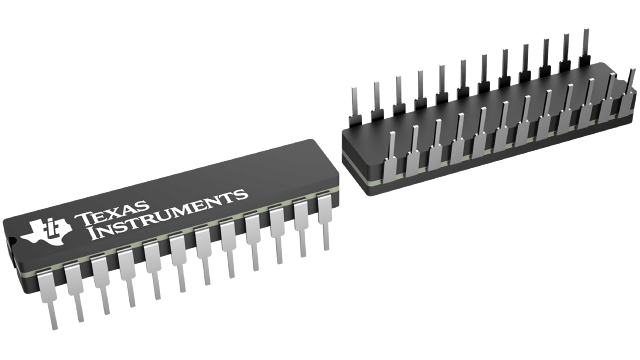

CY54FCT646ATDMB Texas Instruments - Yeehing Electronics
Octal Registered Bus Transceivers with 3-State Outputs
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 35.464 |
100 — 249 | 31.523 |
250 — 999 | 25.914 |
1,000 + | 16.23 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Minimum Operating Temperature | -55 |
Maximum Operating Temperature | 125 |
Factory Pack Quantity | 1 |
Package | Pins | CDIP (JT) | 24 |
For more information, please refer to datasheet
Documents
CY54FCT646ATDMB Datasheet |
More Information
The x92FCT646T devices consist of a bus transceiver circuit with 3-state, D-type flip-flops, and control circuitry arranged for multiplexed transmission of data directly from the input bus or from the internal registers. Data on the A or B bus is clocked into the registers as the appropriate clock pin goes to a high logic level. Output-enable (G) and direction (DIR) inputs control the transceiver function. In the transceiver mode,data present at the high-impedance port can be stored in either the A or B register, or in both. Select controls (SAB, SBA) can multiplex stored and real-time (transparent mode) data. DIR determines which bus receives data when G is low. In the isolation mode (G is high), A data can be stored in the B register and/or B data can be stored in the A register.
