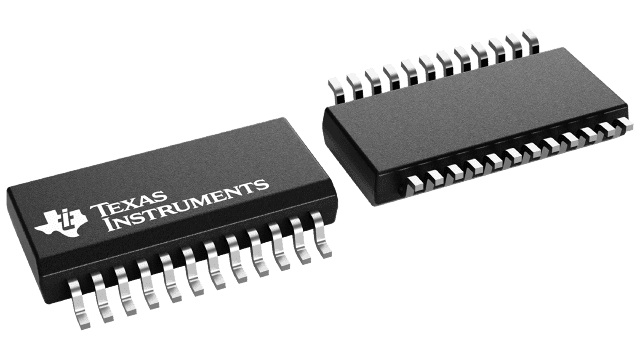

CY74FCT652CTQCT Texas Instruments - Yeehing Electronics

Octal Bus Transceivers and Registers with 3-State Outputs

Pricing (USD)

Quantity	Unit Price
1 — 99	1.089
100 — 249	0.838
250 — 999	0.617
1,000 +	0.31

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

CY74FCT652CTQCT Datasheet

More Information

The CY74FCT652T consists of bus transceiver circuits, D-type flip-flops, and control circuitry arranged for multiplexed transmission of data directly from the input bus or from the internal storage registers. GAB and GBA inputs control the transceiver functions. Select-control (SAB and SBA) inputs select either real-time or stored-data transfer. The circuitry used for select control eliminates the typical decoding glitch that occurs in a multiplexer during the transition between stored and real-time data. A low input level selects real-time data, and a high input level selects stored data.
