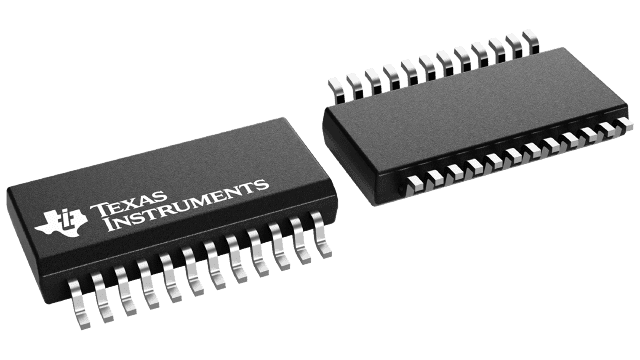

CY74FCT821CTQCT Texas Instruments - Yeehing Electronics
10-Bit Bus Interface Flip-Flops with 3-State Outputs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.99 |
| 100 — 249 | 0.818 |
| 250 — 999 | 0.587 |
| 1,000 + | 0.31 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Flip Flops |
| RoHS | Y |
| Number of Circuits | 1 |
| Logic Family | 74FCT |
| Logic Type | Bus Interface Register |
| Polarity | Non-Inverting |
| Input Type | Single-Ended |
| Output Type | 3-State |
| Propagation Delay Time | 12.5 ns |
| High Level Output Current | - 32 mA |
| Low Level Output Current | 64 mA |
| Supply Voltage - Min | 4.75 V |
| Supply Voltage - Max | 5.25 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | QSOP-24 |
| Packaging | Reel |
| Function | Tri-State 10-Bit |
| Height | 1.5 mm |
| Length | 8.75 mm |
| Operating Temperature Range | - 40 C to + 85 C |
| Series | CY74FCT821T |
| Width | 4 mm |
| Brand | Texas Instruments |
| Number of Channels | 10 |
| Number of Input Lines | 10 |
| Number of Output Lines | 3 |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 4.75 V to 5.25 V |
| Product Type | Flip Flops |
| Factory Pack Quantity | 2500 |
| Subcategory | Logic ICs |
| Unit Weight | 0.059966 oz |
For more information, please refer to datasheet
Documents
| CY74FCT821CTQCT Datasheet |
More Information
This bus-interface register is designed to eliminate the extra packages required to buffer existing registers and provide extra data width for wider address/data paths or buses carrying parity. The CY74FCT821T is a 10-bit-wide buffered version of the popular CY74FCT374 function. This device is ideal for use as an output port requiring high IOL/IOH.
