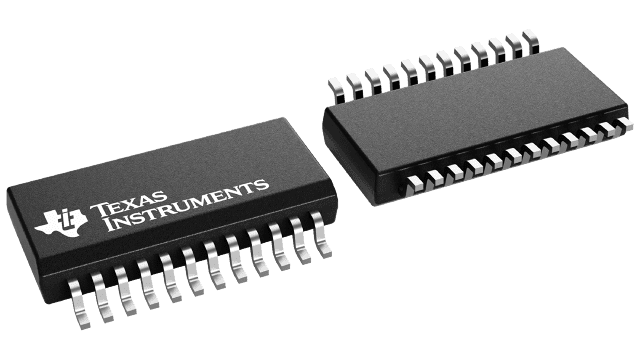

CY74FCT825CTQCT Texas Instruments - Yeehing Electronics
8-Bit Bus Interface Flip-Flops with 3-State Outputs
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.065 |
100 — 249 | 0.819 |
250 — 999 | 0.603 |
1,000 + | 0.30 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Flip Flops |
RoHS | Y |
Number of Circuits | 1 |
Logic Family | FCT |
Logic Type | CMOS |
Polarity | Non-Inverting |
Input Type | Single-Ended |
Output Type | 3-State |
Propagation Delay Time | 12.5 ns |
High Level Output Current | - 32 mA |
Low Level Output Current | 64 mA |
Supply Voltage - Min | 4.75 V |
Supply Voltage - Max | 5.25 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Mounting Style | SMD/SMT |
Package / Case | QSOP-24 |
Packaging | Reel |
Function | D-Type Bus Interface |
Height | 1.5 mm |
Length | 8.75 mm |
Operating Temperature Range | - 40 C to + 85 C |
Series | CY74FCT825T |
Width | 4 mm |
Brand | Texas Instruments |
Number of Channels | 8 |
Number of Input Lines | 8 |
Number of Output Lines | 8 |
Moisture Sensitive | Yes |
Operating Supply Voltage | 5 V |
Product Type | Flip Flops |
Reset Type | Master Reset |
Factory Pack Quantity | 2500 |
Subcategory | Logic ICs |
Unit Weight | 0.059966 oz |
For more information, please refer to datasheet
Documents
CY74FCT825CTQCT Datasheet |
More Information
This bus-interface register is designed to eliminate the extra packages required to buffer existing registers and provide extra data width for wider address/data paths or buses carrying parity. The CY74FCT825T is an 8-bit buffered register with all the CY74FCT823T controls, plus multiple enables (OE1, OE2, OE3) to allow multiuser control of the interface, e.g., CS, DMA, and RD/WR. This device is ideal for use as an output port requiring high IOL/IOH.
