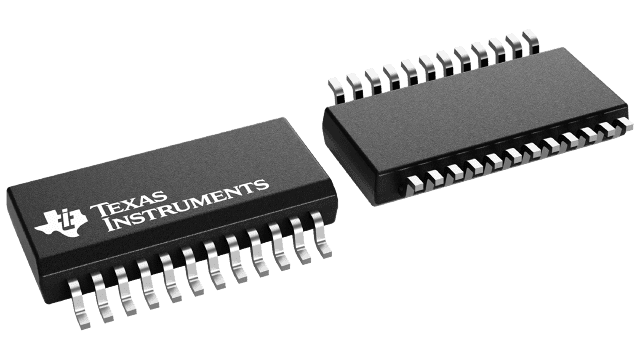

CY74FCT827ATQCT Texas Instruments - Yeehing Electronics

10-ch, 4.75-V to 5.25-V buffers with TTL-compatible CMOS inputs and 3-state outputs

Pricing (USD)

Quantity	Unit Price
1 — 99	1.015
100 — 249	0.838
250 — 999	0.602
1,000 +	0.32

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Buffers & Line Drivers
RoHS	Y
Number of Input Lines	10 Input
Number of Output Lines	10 Output
Polarity	Non-Inverting
Supply Voltage - Max	5.25 V
Supply Voltage - Min	4.75 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	QSOP-24
Packaging	Reel
Function	Buffer/Line Driver
Height	1.5 mm (Max)
Length	8.75 mm (Max)
Operating Temperature Range	- 40 C to + 85 C
Output Type	3-State
Series	CY74FCT827T
Technology	CMOS
Width	4 mm (Max)
Brand	Texas Instruments
Logic Family	FCT
Logic Type	CMOS
Number of Channels	10
High Level Output Current	- 32 mA
Input Signal Type	Single-Ended
Low Level Output Current	64 mA
Moisture Sensitive	Yes
Operating Supply Voltage	4.75 V to 5.25 V
Product Type	Buffers & Line Drivers
Propagation Delay Time	15 ns at 5 V
Factory Pack Quantity	2500
Subcategory	Logic ICs
Unit Weight	0.059966 oz

For more information, please refer to datasheet

Documents

CY74FCT827ATQCT Datasheet

More Information

The x92FCT827T devices are 10-bit bus drivers that provide high-performance bus-interface buffering for wide data/address paths or buses carrying parity. The 10-bit buffers have NANDed output enables for maximum control flexibility. The x92FCT827T devices are designed for high-capacitance-load drive capability, while providing low-capacitance bus loading at both inputs and outputs. All outputs are designed for low-capacitance bus loading in the high-impedance state.
