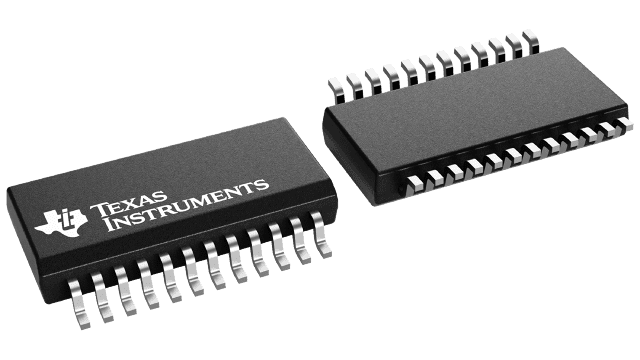

CY74FCT841CTQCT Texas Instruments - Yeehing Electronics
10-Bit Bus-Interface D-Type Latches with 3-State Outputs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.319 |
| 100 — 249 | 1.09 |
| 250 — 999 | 0.783 |
| 1,000 + | 0.41 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Latches |
| RoHS | Y |
| Number of Circuits | 1 Circuit |
| Logic Type | D-Type Latch |
| Logic Family | FCT |
| Polarity | Non-Inverting |
| Number of Output Lines | 10 Line |
| High Level Output Current | - 32 mA |
| Low Level Output Current | 32 mA |
| Propagation Delay Time | 13 ns at 5 V |
| Supply Voltage - Max | 5.25 V |
| Supply Voltage - Min | 4.75 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Package / Case | QSOP-24 |
| Packaging | Reel |
| Function | Transparent |
| Height | 1.5 mm |
| Length | 8.75 mm |
| Output Type | 3-State |
| Series | CY74FCT841T |
| Type | D-Type |
| Width | 4 mm |
| Brand | Texas Instruments |
| Mounting Style | SMD/SMT |
| Number of Channels | 10 Channels |
| Number of Input Lines | 10 Line |
| Moisture Sensitive | Yes |
| Operating Supply Current | 200 uA |
| Operating Supply Voltage | 5 V |
| Product Type | Latches |
| Reset Type | No Reset |
| Factory Pack Quantity | 2500 |
| Subcategory | Logic ICs |
| Unit Weight | 0.059966 oz |
For more information, please refer to datasheet
Documents
| CY74FCT841CTQCT Datasheet |
More Information
The x92FCT841T bus-interface latches are designed to eliminate additional packages required to buffer existing latches and provide additional data width for wider address/data paths or buses carrying parity. The x92FCT841T devices are buffered 10-bit-wide versions of the FCT373 function.
