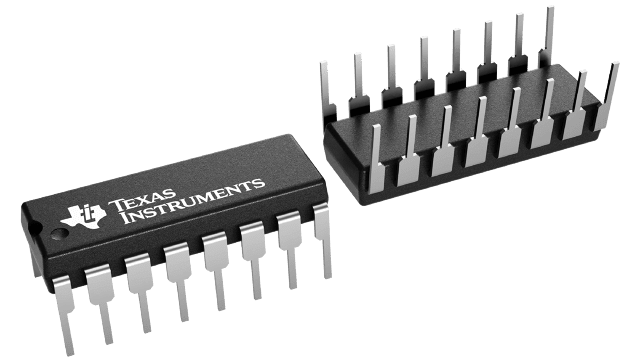

DAC0800LCN/NOPB Texas Instruments - Yeehing Electronics

8-Bit D/A Converter

Pricing (USD)

Quantity	Unit Price
1 — 99	2.163
100 — 249	1.896
250 — 999	1.329
1,000 +	1.03

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Digital to Analog Converters - DAC
RoHS	Y
Series	DAC0800
Minimum Operating Temperature	0 C
Maximum Operating Temperature	+ 70 C
Mounting Style	Through Hole
Package / Case	PDIP-16
Packaging	Tube
Features	Current Output
Power Consumption	33 mW
Brand	Texas Instruments
Gain Error	0.2 % FSR
Product Type	DACs - Digital to Analog Converters
Factory Pack Quantity	25
Subcategory	Data Converter ICs
Unit Weight	0.037172 oz

For more information, please refer to datasheet

Documents

DAC0800LCN/NOPB Datasheet

More Information

The DAC0800 series are monolithic 8-bit high-speed current-output digital-to-analog converters (DAC) featuring typical settling times of 100 ns. When used as a multiplying DAC, monotonic performance over a 40 to 1 reference current range is possible. The DAC0800 series also features high compliance complementary current outputs to allow differential output voltages of 20 Vp-p with simple resistor loads. The reference-to-full-scale current matching of better than ±1 LSB eliminates the need for full-scale trims in most applications, while the nonlinearities of better than ±0.1% over temperature minimizes system error accumulations.
