DAC102S085CISDX/NOPB Texas Instruments - Yeehing Electronics

10-Bit Micro Power DUAL Digital-to-Analog Converter with Rail-to-Rail Output

Pricing (USD)

Quantity	Unit Price
1 — 99	2.151
100 — 249	1.885
250 — 999	1.322
1,000 +	0.75

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Minimum Operating Temperature	-40
Maximum Operating Temperature	105
Factory Pack Quantity	4,500

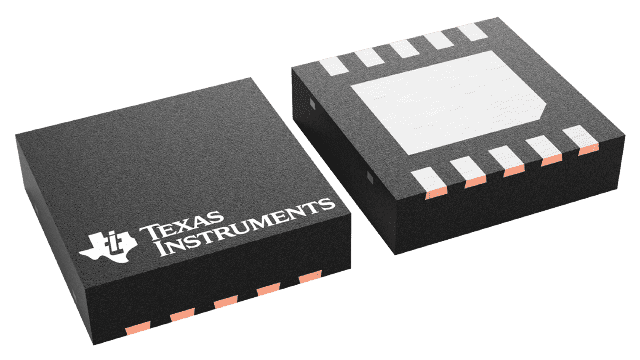

Package | Pins	WSON (DSC) | 10

For more information, please refer to datasheet

Documents

DAC102S085CISDX/NOPB Datasheet

More Information

The DAC102S085 is a full-featured, general-purpose DUAL 10-bit voltage-output digital-to-analog converter (DAC) that can operate from a single 2.7-V to 5.5-V supply and consumes 0.6 mW at 3 V and 1.6 mW at 5 V. The DAC102S085 is packaged in 10-pin WSON and VSSOP packages. The 10-pin WSON package makes the DAC102S085 the smallest DUAL DAC in its class. The on-chip output amplifier allows rail-to-rail output swing and the three wire serial interface operates at clock rates up to 40 MHz over the entire supply voltage range. Competitive devices are limited to 25-MHz clock rates at supply voltages in the 2.7-V to 3.6-V range. The serial interface is compatible with standard SPI™, QSPI, MICROWIRE and DSP interfaces.
