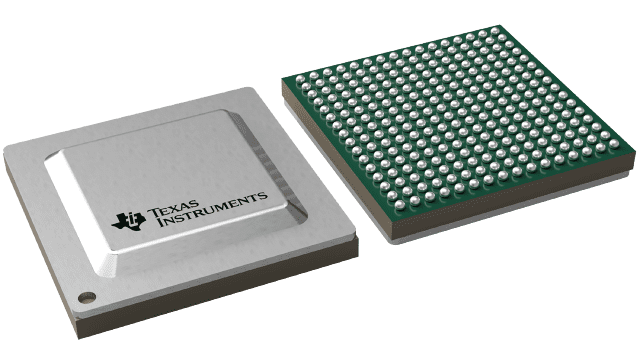

DAC12DL3200ACF Texas Instruments - Yeehing Electronics

12-bit, low-latency, dual 3.2-GSPS or single 6.4-GSPS, RF-sampling DAC (LVDS interface)

Pricing (USD)

Quantity	Unit Price
1 — 99	None
100 — 249	None
250 — 999	None
1,000 +	None

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

DAC12DL3200ACF Datasheet

More Information

The DAC12DL3200 is a very low latency, dual channel, RF sampling digital-to-analog converter (DAC) capable of input and output rates of up to 3.2-GSPS in dual channel mode or 6.4-GSPS in single channel mode. The DAC can transmit signal bandwidths beyond 2 GHz at carrier frequencies approaching 8 GHz when using the multi-Nyquist output modes. The high output frequency range enables direct sampling through C-band (8 GHz) and beyond.
