Texas Instruments
DAC3282IRGZT
DAC3282IRGZT
Regular price
$18.31 USD
Regular price
Sale price
$18.31 USD
Unit price
per
Couldn't load pickup availability

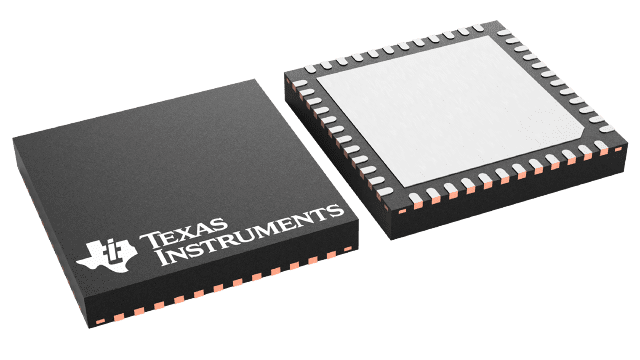

DAC3282IRGZT Texas Instruments - Yeehing Electronics
Dual-Channel, 16-Bit, 625-MSPS, 1x-2x Interpolating Digital-to-Analog Converter (DAC)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 40.013 |
| 100 — 249 | 35.567 |
| 250 — 999 | 29.238 |
| 1,000 + | 18.31 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Digital to Analog Converters - DAC |
| RoHS | Y |
| Series | DAC3282 |
| Resolution | 16 bit |
| Sampling Rate | 625 MS/s |
| Number of Channels | 2 Channel |
| Settling Time | 10.4 ns |
| Interface Type | Parallel |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-48 |
| Packaging | Reel |
| Features | High Performance |
| Number of Converters | 2 Converter |
| Power Consumption | 950 mW |
| Architecture | Current Sink |
| Brand | Texas Instruments |
| Development Kit | DAC3282EVM |
| Moisture Sensitive | Yes |
| Product Type | DACs - Digital to Analog Converters |
| SFDR - Spurious Free Dynamic Range | 83 dB |
| SNR - Signal to Noise Ratio | 77 dB |
| Factory Pack Quantity | 250 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.004938 oz |
For more information, please refer to datasheet
Documents
| DAC3282IRGZT Datasheet |
More Information
The DAC3282 is a dual-channel 16-bit 625 MSPS digital-to-analog converter (DAC) with an 8-bit LVDS input data bus with on-chip termination, optional 2x interpolation filter, and internal voltage reference. The DAC3282 offers superior linearity, noise and crosstalk performance.
