Texas Instruments

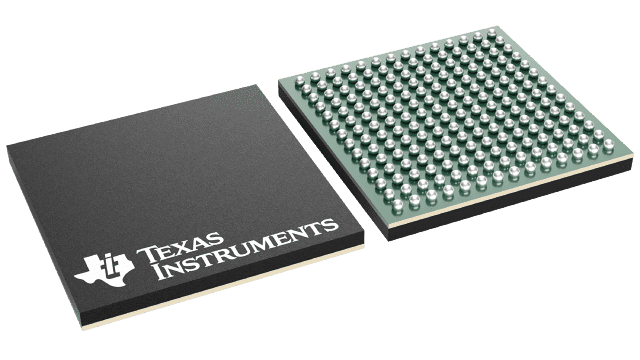

DAC3482IZAY
DAC3482IZAY
Regular price
$22.10 USD
Regular price
Sale price
$22.10 USD
Unit price
per
Couldn't load pickup availability
DAC3482IZAY Texas Instruments - Yeehing Electronics
Dual-Channel, 16-Bit, 1.25-GSPS, 1x-16x Interpolating Digital-to-Analog Converter (DAC)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 48.305 |
| 100 — 249 | 42.938 |
| 250 — 999 | 35.297 |
| 1,000 + | 22.10 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Digital to Analog Converters - DAC |
| RoHS | Y |
| Series | DAC3482 |
| Resolution | 16 bit |
| Sampling Rate | 1.25 GS/s |
| Number of Channels | 2 Channel |
| Settling Time | 10 ns |
| Interface Type | Parallel |
| Supply Voltage - Max | 1.26 V, 3.46 V |
| Supply Voltage - Min | 1.14 V, 3.14 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | nFBGA-196 |
| Packaging | Tray |
| Features | Ultra High Speed |
| Number of Converters | 2 Converter |
| Output Type | Current |
| Power Consumption | 800 mW |
| Architecture | Current Source |
| Brand | Texas Instruments |
| Development Kit | DAC3482EVM |
| DNL - Differential Nonlinearity | +/- 2 LSB |
| INL - Integral Nonlinearity | +/- 4 LSB |
| Moisture Sensitive | Yes |
| Product Type | DACs - Digital to Analog Converters |
| Reference Voltage | 1.2 V |
| SFDR - Spurious Free Dynamic Range | 82 dB |
| Factory Pack Quantity | 160 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.014138 oz |
For more information, please refer to datasheet
Documents
| DAC3482IZAY Datasheet |
More Information
The DAC3482 is a very low power, high dynamic range, dual-channel, 16-bit digital-to-analog converter (DAC) with a sample rate as high as 1.25 GSPS.
