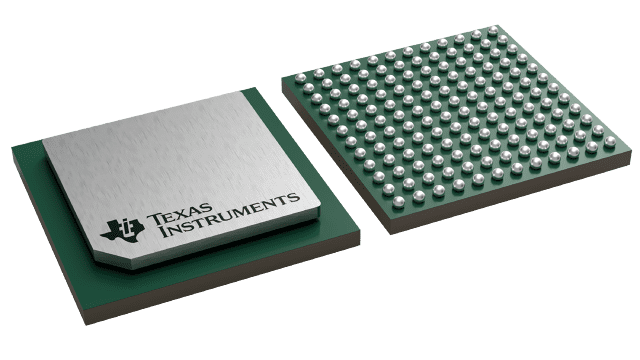

DAC38RF86IAAV


YeeHing #: Y013-DAC38RF86IAAV
Inventory: 7000

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

DAC38RF86IAAV Texas Instruments - Yeehing Electronics

Dual-Channel, 14-Bit, 9-GSPS, 6x-24x Interpolating, 9 GHz GSM PLL Digital-to-Analog Converter (DAC)

Pricing (USD)

Quantity Unit Price
1 — 99 203.26
100 — 249 183.985
250 — 999 178.728
1,000 + 122.66

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Digital to Analog Converters - DAC
RoHS Y
Series DAC38RF86
Resolution 14 bit
Sampling Rate 9 GS/s
Number of Channels 2 Channel
Settling Time 1 ns
Interface Type JESD204B
Reference Type External, Internal
Supply Voltage - Max 1.89 V
Supply Voltage - Min - 1.89 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Mounting Style SMD/SMT
Package / Case FCBGA-144
Packaging Tray
Features Ultra High Speed
Number of Converters 2 Converter
Output Type Single Ended
Power Consumption 3.8 W
Type RF DAC
Architecture Current Source
Brand Texas Instruments
Shutdown No Shutdown
Moisture Sensitive Yes
Pd - Power Dissipation 3779 mW
Product Type DACs - Digital to Analog Converters
Reference Voltage 0.9 V
SFDR - Spurious Free Dynamic Range 72 dB
Factory Pack Quantity 168
Subcategory Data Converter ICs

For more information, please refer to datasheet

Documents

DAC38RF86IAAV Datasheet

More Information

The DAC38RF86/96 is a family of high-performance, dual-channel, 14-bit, 9-GSPS, RF-sampling digital-to-analog converters (DACs) that are capable of synthesizing wideband signals from 0 to 4.5 GHz. The DAC38RF87/97 is also a family of high-performance, dual-channel, 14-bit, 6-GSPS, RF-sampling digital-to-analog converters (DACs) that are capable of synthesizing wideband signals from 0 to 3 GHz. A high dynamic range allows the DAC38RFxx family to generate signals for a wide range of applications including 3G/4G signals for wireless base-stations and radar.
