Texas Instruments

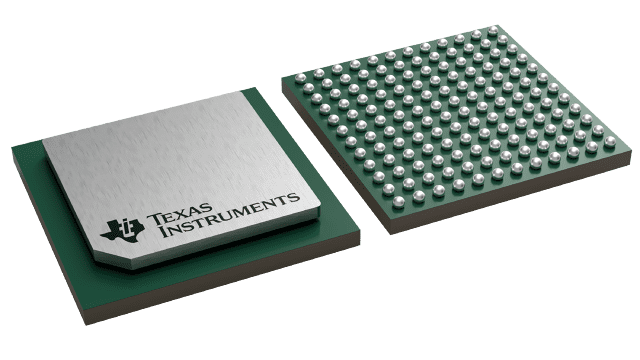

DAC38RF89IAAV
DAC38RF89IAAV
Regular price
$134.85 USD
Regular price
Sale price
$134.85 USD
Unit price
per
Couldn't load pickup availability
DAC38RF89IAAV Texas Instruments - Yeehing Electronics
Dual-Channel, 14-Bit, 8.4-GSPS, 1x-24x Interpolating, 5 & 7.5 GHz PLL Digital-to-Analog Converter
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 223.472 |
| 100 — 249 | 202.28 |
| 250 — 999 | 196.501 |
| 1,000 + | 134.85 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Digital to Analog Converters - DAC |
| Shipping Restrictions | |
| RoHS | Y |
| Series | DAC38RF89 |
| Resolution | 14 bit |
| Sampling Rate | 9 GS/s |
| Number of Channels | 2 Channel |
| Settling Time | 1 ns |
| Interface Type | JESD204B |
| Reference Type | External, Internal |
| Supply Voltage - Max | 1.8 V |
| Supply Voltage - Min | - 1.8 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | FCBGA-144 |
| Packaging | Tray |
| Features | Ultra High Speed |
| Number of Converters | 2 Converter |
| Output Type | Differential |
| Power Consumption | 3.8 W |
| Type | RF DAC |
| Architecture | Current Source |
| Brand | Texas Instruments |
| Shutdown | No Shutdown |
| Development Kit | DAC38RF82EVM |
| DNL - Differential Nonlinearity | 3 LSB |
| Gain Error | 2 % FSR |
| INL - Integral Nonlinearity | 4 LSB |
| Moisture Sensitive | Yes |
| Operating Supply Current | 815 mA |
| Pd - Power Dissipation | 3.8 W |
| Product Type | DACs - Digital to Analog Converters |
| Reference Voltage | 0.9 V |
| SFDR - Spurious Free Dynamic Range | 72 dB |
| Factory Pack Quantity | 168 |
| Subcategory | Data Converter ICs |
For more information, please refer to datasheet
Documents
| DAC38RF89IAAV Datasheet |
More Information
The DAC38RF82 and DAC38RF89 are high performance, wide bandwidth RF-sampling digital-to-analog (DACs) that are capable of dual channel input data rate up to 3.33 GSPS or single-channel operation with 8-bits up to 9-GSPS. The devices have a low power JESD204B Interface with up to 8 lanes, with a maximum bit rate of 12.5 Gbps (DAC38RF89) and 12.8 Gbps (DAC38RF82).
