Texas Instruments
DAC38RF90IAAV
DAC38RF90IAAV
Regular price
$82.00 USD
Regular price
Sale price
$82.00 USD
Unit price
per
Couldn't load pickup availability
DAC38RF90IAAV Texas Instruments - Yeehing Electronics
Dual-Channel, 14-Bit, 9-GSPS, 12x-24x Interpolating, 6 & 9 GHz PLL Digital-to-Analog Converter (DAC)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 135.887 |
| 100 — 249 | 123.001 |
| 250 — 999 | 119.487 |
| 1,000 + | 82.00 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Digital to Analog Converters - DAC |
| RoHS | Y |
| Series | DAC38RF90 |
| Resolution | 14 bit |
| Sampling Rate | 9 GS/s |
| Number of Channels | 2 Channel |
| Settling Time | 1 ns |
| Interface Type | JESD204B |
| Reference Type | External, Internal |
| Supply Voltage - Max | 1.89 V |
| Supply Voltage - Min | - 1.89 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |

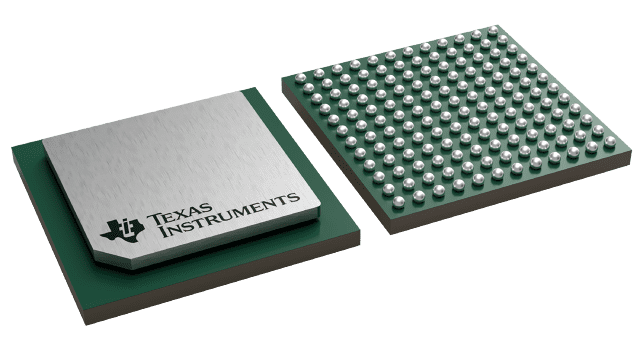

| Package / Case | FCBGA-144 |
| Packaging | Reel |
| Features | Ultra High Speed |
| Number of Converters | 2 Converter |
| Output Type | Single Ended |
| Power Consumption | 3.8 W |
| Type | RF DAC |
| Architecture | Current Source |
| Brand | Texas Instruments |
| Shutdown | No Shutdown |
| Pd - Power Dissipation | 3779 mW |
| Product Type | DACs - Digital to Analog Converters |
| Reference Voltage | 0.9 V |
| SFDR - Spurious Free Dynamic Range | 72 dB |
| Factory Pack Quantity | 1000 |
| Subcategory | Data Converter ICs |
For more information, please refer to datasheet
Documents
| DAC38RF90IAAV Datasheet |
More Information
The DAC38RFxx is a family of high-performance, dual/single-channel, 14-bit, 9-GSPS, RF-sampling digital-to-analog converters (DACs) that are capable of synthesizing wideband signals from 0 to 4.5 GHz. A high dynamic range allows the DAC38RFxx family to generate signals for a wide range of applications including 3G/4G signals for wireless base-stations and radar.
