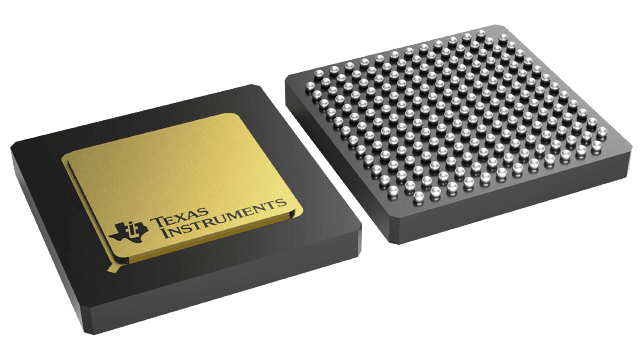

DAC5670MGEM/EM


YeeHing #: Y004-DAC5670MGEM/EM
Inventory: 7600

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

DAC5670MGEM/EM Texas Instruments - Yeehing Electronics

QMLV, 100-krad, ceramic, 14-bit, single-channel, 2.4-GSPS DAC

Pricing (USD)

Quantity Unit Price
1 — 99 3526.589
100 — 249 3337.664
250 — 999 3148.74
1,000 + 2468.61

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

DAC5670MGEM/EM Datasheet

More Information

The DAC5670 is a 14-bit 2.4-GSPS DAC with dual demultiplexed differential input ports. The DAC5670 is clocked at the DAC sample rate and the two input ports run at a maximum of 1.2 GSPS. An additional reference bit input sequence is used to adjust the output clock delay to the data source, optimizing the internal data latching clock relative to this reference bit with a delay lock loop (DLL). Alternatively, the DLL may be bypassed and the timing interface managed by controlling DATA setup and hold timing to DLYCLK.
