Texas Instruments

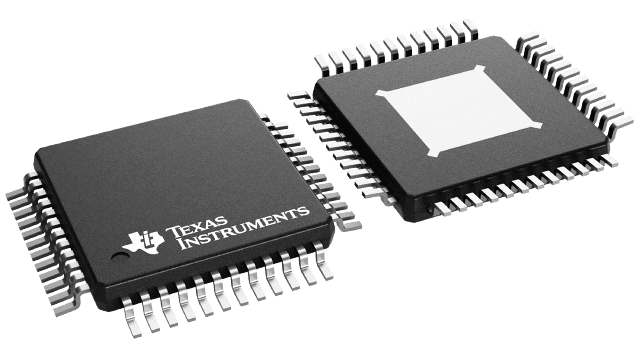

DAC5674IPHP
DAC5674IPHP
Regular price
$16.81 USD
Regular price
Sale price
$16.81 USD
Unit price
per
Couldn't load pickup availability
DAC5674IPHP Texas Instruments - Yeehing Electronics
14-Bit, 400-MSPS, 2x-4x Interpolating Digital-to-Analog Converter (DAC)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 36.737 |
| 100 — 249 | 32.655 |
| 250 — 999 | 26.844 |
| 1,000 + | 16.81 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Digital to Analog Converters - DAC |
| RoHS | Y |
| Series | DAC5674 |
| Resolution | 14 bit |
| Sampling Rate | 400 MS/s |
| Number of Channels | 1 Channel |
| Settling Time | 20 ns |
| Interface Type | Parallel |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 3 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | HTQFP-48 |
| Packaging | Tray |
| Features | High Performance |
| Height | 1 mm |
| Number of Converters | 1 Converter |
| Power Consumption | 435 mW |
| Architecture | Current Source |
| Brand | Texas Instruments |
| Development Kit | DAC5674EVM |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 3.3 V |
| Product Type | DACs - Digital to Analog Converters |
| SFDR - Spurious Free Dynamic Range | 76 dB |
| SNR - Signal to Noise Ratio | 71 dB |
| Factory Pack Quantity | 250 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.004744 oz |
For more information, please refer to datasheet
Documents
| DAC5674IPHP Datasheet |
More Information
The DAC5674 is a 14-bit resolution high-speed digital-to-analog converter (DAC) with integrated 4x-interpolation filter, on-board clock multiplier, and on-chip voltage reference. The device has been designed for high-speed digital data transmission in wired and wireless communication systems, high-frequency direct-digital synthesis (DDS) and waveform reconstruction in test and measurement applications.
