Texas Instruments
DAC5675AHFG/EM
DAC5675AHFG/EM
Regular price
$1,974.69 USD
Regular price
Sale price
$1,974.69 USD
Unit price
per
Couldn't load pickup availability

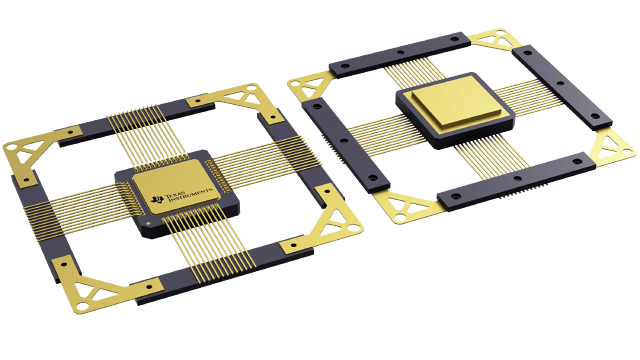

DAC5675AHFG/EM Texas Instruments - Yeehing Electronics
QMLV, 150-krad, ceramic, 14-bit, single-channel, 400-MSPS DAC
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2820.989 |
| 100 — 249 | 2669.864 |
| 250 — 999 | 2518.74 |
| 1,000 + | 1974.69 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Digital to Analog Converters - DAC |
| RoHS | N |
| Series | DAC5675A-SP |
| Resolution | 14 bit |
| Sampling Rate | 400 MS/s |
| Number of Channels | 1 Channel |
| Settling Time | 12 ns |
| Interface Type | Parallel |
| Minimum Operating Temperature | - 55 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | CFP-52 |
| Features | Low Power |
| Number of Converters | 1 Converter |
| Power Consumption | 660 mW |
| Architecture | Current Sink |
| Brand | Texas Instruments |
| DNL - Differential Nonlinearity | +/- 2 LSB |
| Gain Error | 10 % FSR |
| Product Type | DACs - Digital to Analog Converters |
| SFDR - Spurious Free Dynamic Range | 82 dB |
| SNR - Signal to Noise Ratio | 67 dB |
| Factory Pack Quantity | 1 |
| Subcategory | Data Converter ICs |
For more information, please refer to datasheet
Documents
| DAC5675AHFG/EM Datasheet |
More Information
The DAC5675A-SP is a radiation-tolerant, 14-bit resolution high-speed digital-to-analog converter (DAC) primarily suited for space satellite applications. The DAC5675A-SP is designed for high-speed digital data transmission in wired and wireless communication systems, high-frequency direct digital synthesis (DDS), and waveform reconstruction in test and measurement applications. The DAC5675A-SP has excellent SFDR at high intermediate frequencies, which makes it well suited for multicarrier transmission in TDMA and CDMA based cellular base transceiver stations (BTSs).
