Texas Instruments
DAC5675AIPHP
DAC5675AIPHP
Regular price
$33.91 USD
Regular price
Sale price
$33.91 USD
Unit price
per
Couldn't load pickup availability

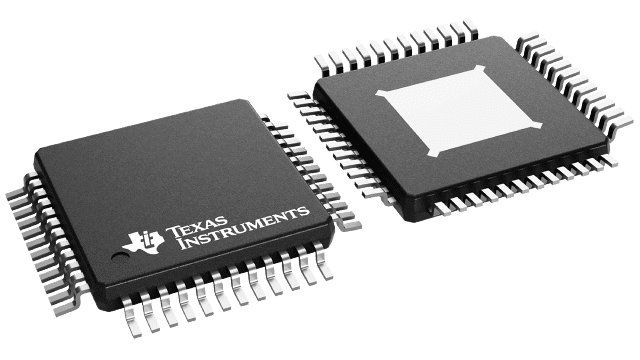

DAC5675AIPHP Texas Instruments - Yeehing Electronics
14-Bit, 400-MSPS Digital-to-Analog Converter (DAC)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 74.127 |
| 100 — 249 | 65.891 |
| 250 — 999 | 54.166 |
| 1,000 + | 33.91 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Digital to Analog Converters - DAC |
| RoHS | Y |
| Series | DAC5675A |
| Resolution | 14 bit |
| Sampling Rate | 400 MS/s |
| Number of Channels | 1 Channel |
| Settling Time | 12 ns |
| Interface Type | Parallel |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 3.15 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | HTQFP-48 |
| Packaging | Tray |
| Features | High Performance |
| Height | 1 mm |
| Number of Converters | 1 Converter |
| Power Consumption | 660 mW |
| Architecture | Current Sink |
| Brand | Texas Instruments |
| Development Kit | DAC5675AEVM |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 3.3 V |
| Product Type | DACs - Digital to Analog Converters |
| SFDR - Spurious Free Dynamic Range | 74 dB |
| Factory Pack Quantity | 250 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.004744 oz |
For more information, please refer to datasheet
Documents
| DAC5675AIPHP Datasheet |
More Information
The DAC5675A is a 14-bit resolution high-speed digital-to-analog converter. The DAC5675A is designed for high-speed digital data transmission in wired and wireless communication systems, high-frequency direct-digital synthesis (DDS), and waveform reconstruction in test and measurement applications. The DAC5675A has excellent spurious-free dynamic range (SFDR) at high intermediate frequencies, which makes the DAC5675A well-suited for multicarrier transmission in TDMA- and CDMA-based cellular base transceiver stations (BTSs).
